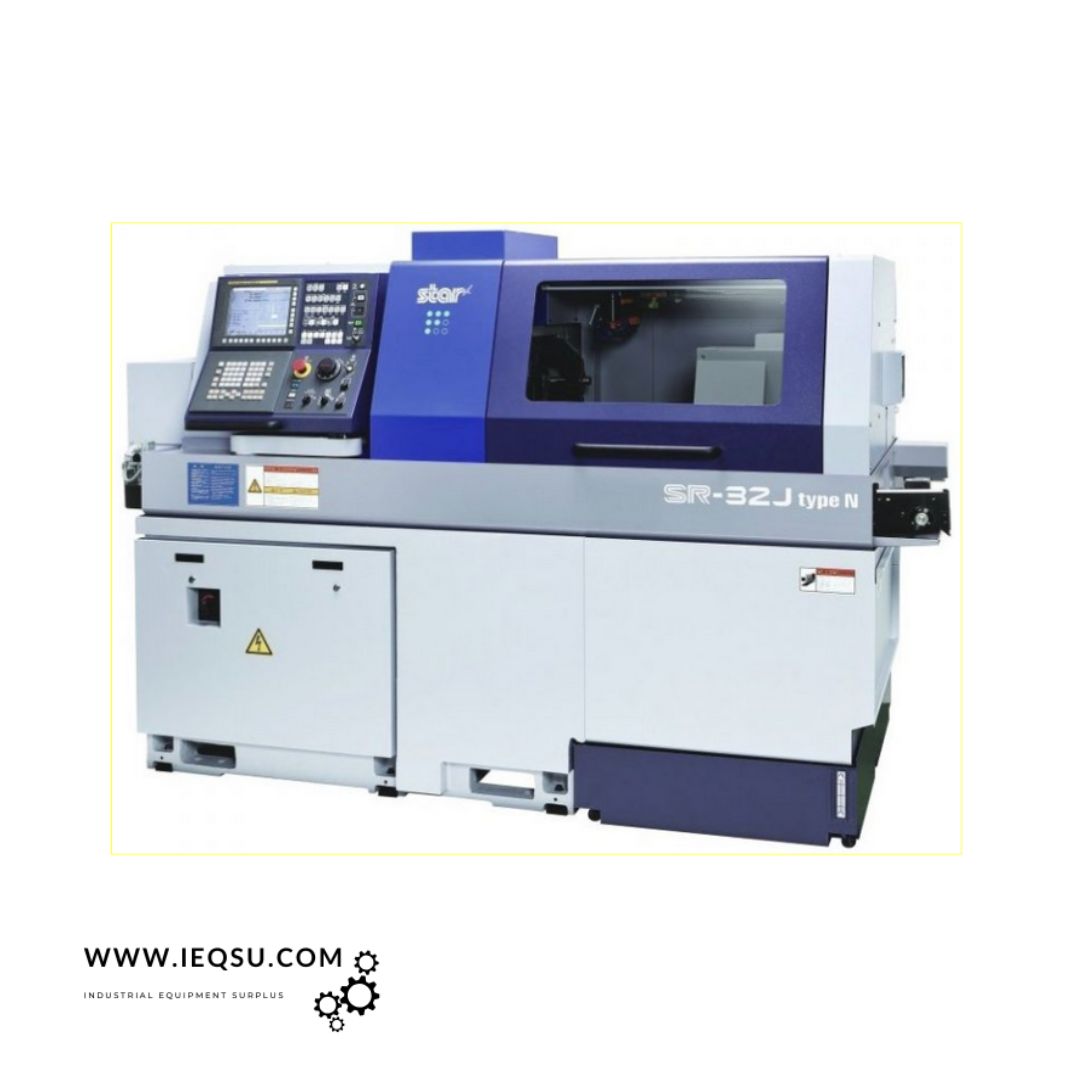

STAR SR-32J TYPE N

For Sale: STAR SR-32J Type N – 9-Axis CNC Swiss-Type Lathe Package (x2)
Control: Fanuc 31i-B5 | Model Years: 2017 (March & April)
Machines Available: 2 Units | Perfect for Precision Bar Machining

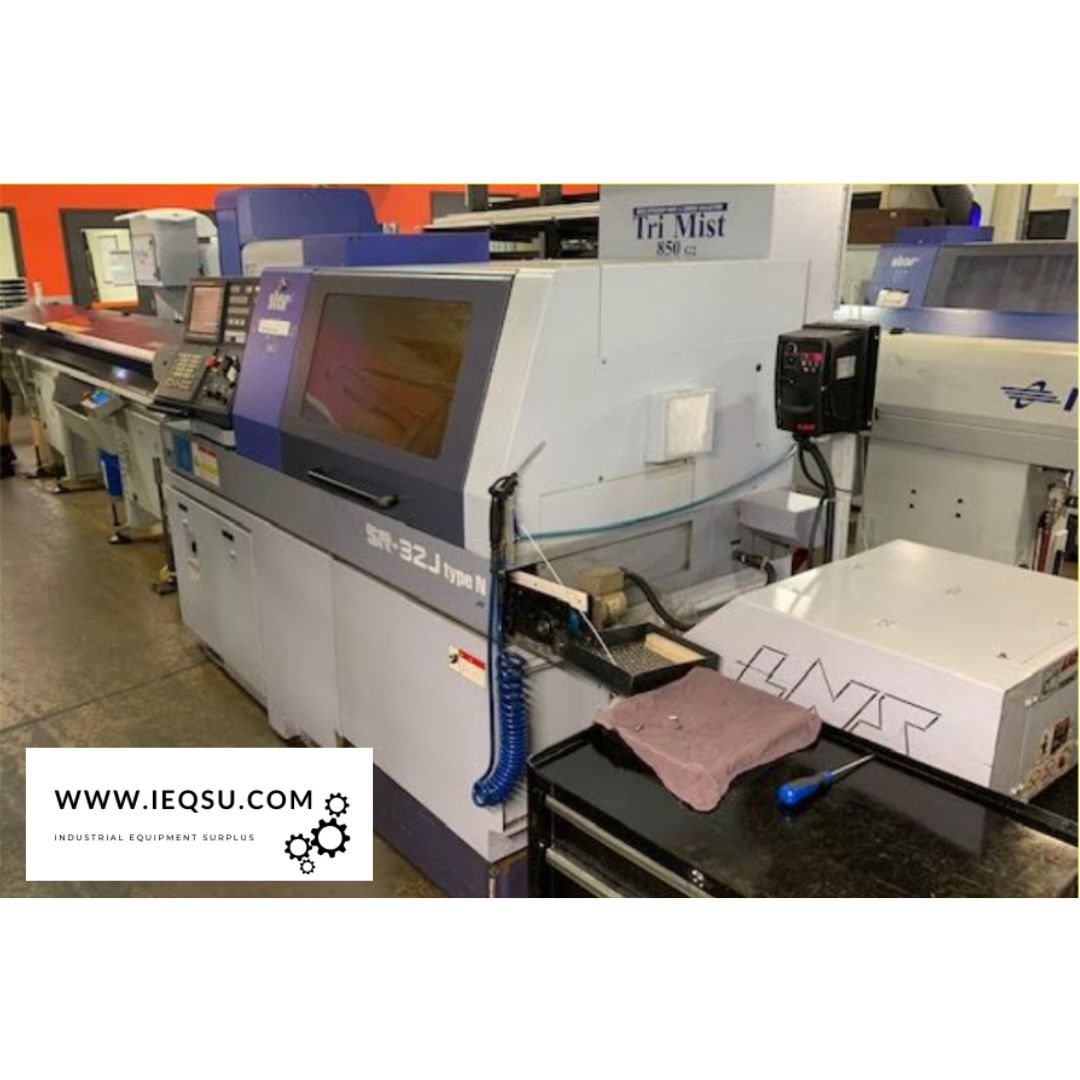

Elevate your production capabilities with this powerful and reliable STAR SR-32J Type N Swiss-type CNC lathe, ideal for high-precision machining of small, complex components. Both machines (March and April 2017 builds) have been used in a clean, professional production environment and are equipped with full automation and high-spec options for nonstop, efficient operation.

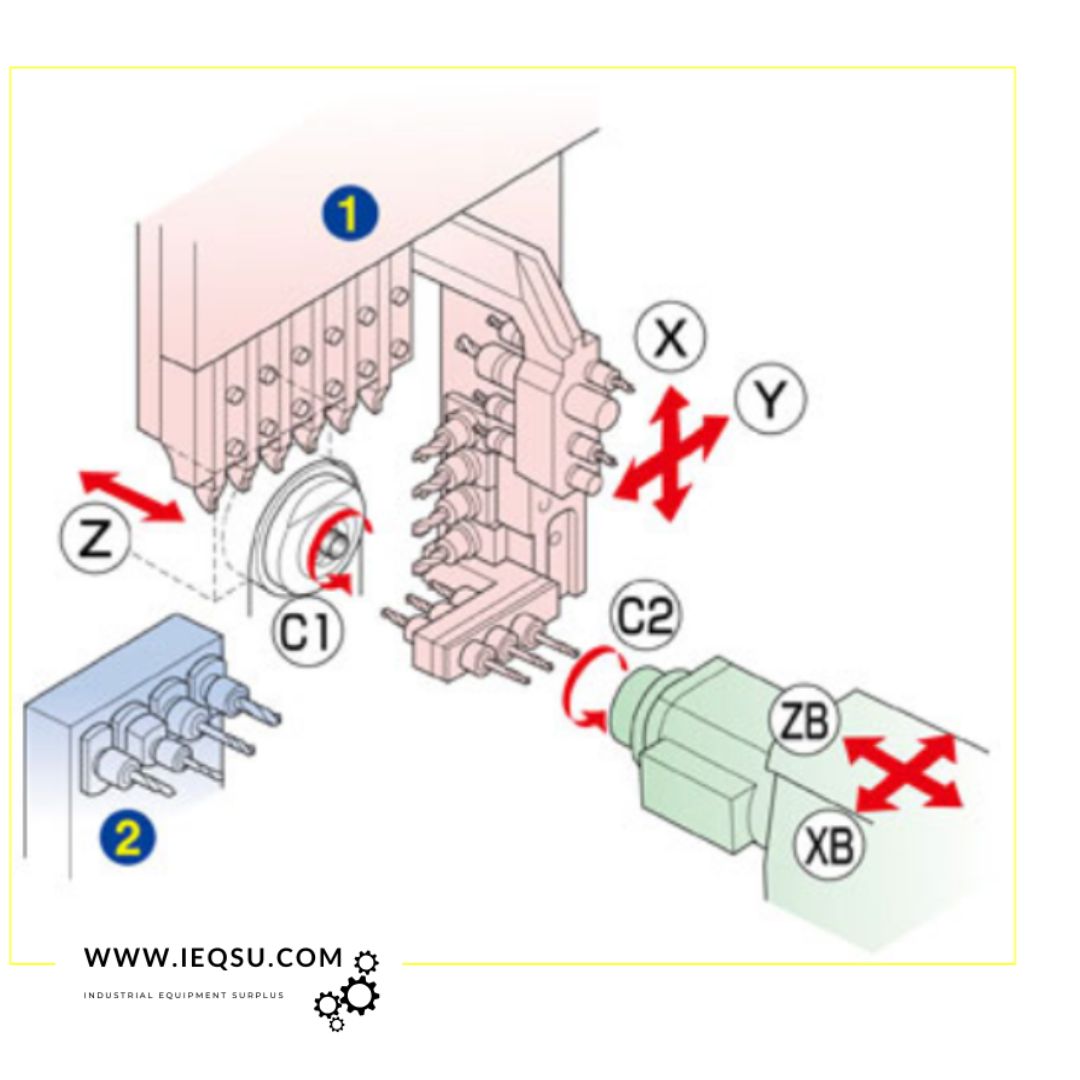

🔧 Axis Configuration (9-Axis):
X1: 178 mm

Y1: 320 mm

Z1: 80 mm

XB: 289 mm

ZB: 270 mm

🌀 Main Spindle:
Power: 7.5 kW

Speed: 7,000 RPM

Collet Chuck: TF32

Draw Tube Capacity: 32 mm

C-Axis: 0.001° Indexing

🔄 Counter Spindle:
Power: 3.7 kW

Speed: 7,000 RPM

Collet Chuck: TF32

C-Axis: 0.001° Indexing

⚙️ Tooling & Work Area Configuration:
Front Tool Post:
Turning: 6 Stations

Boring/Drilling: 4 Stations

Cross Milling/Drilling (Live Tools): 4 Stations

Power Driven Tool Speed: 5,000 RPM

Back Tool Post:
4 Universal Stations (Live Tools)

Power Driven Tool Speed: 6,000 RPM

🔄 Automation Included:
Edge Patriot 338 Bar Feeder

Two (2) Complete Guide Channel Sets

Workpiece Unloader Conveyor

💡 Factory Options & Upgrades:
High-Pressure Coolant System (1000 PSI) with Bag Filtration

Sub-Spindle Flushing (Coolant + Air)

Part Ejector

Hinge-Type Chip Conveyor

📏 Machine Dimensions:
Machine Footprint (L x D x H): 2.7m x 1.3m x 1.9m

Weight: 3,100 kg (each)

Total System Length (with bar feeder + chip conveyor): 8.1m

✅ Highlights:
Dual machine setup ideal for high-volume production

Full Fanuc 31i-B5 control for precision and flexibility

Powerful main and sub-spindles with live tooling

Turnkey ready with bar feeder, chip conveyor, coolant system, and more

Excellent for medical, aerospace, and electronics components

Condition: Well-maintained, operational, and available for inspection
