Sandvik VCGX 16-04-04-AL H10 Carbide Turning Inserts – 7 pcs / CoroTurn 107

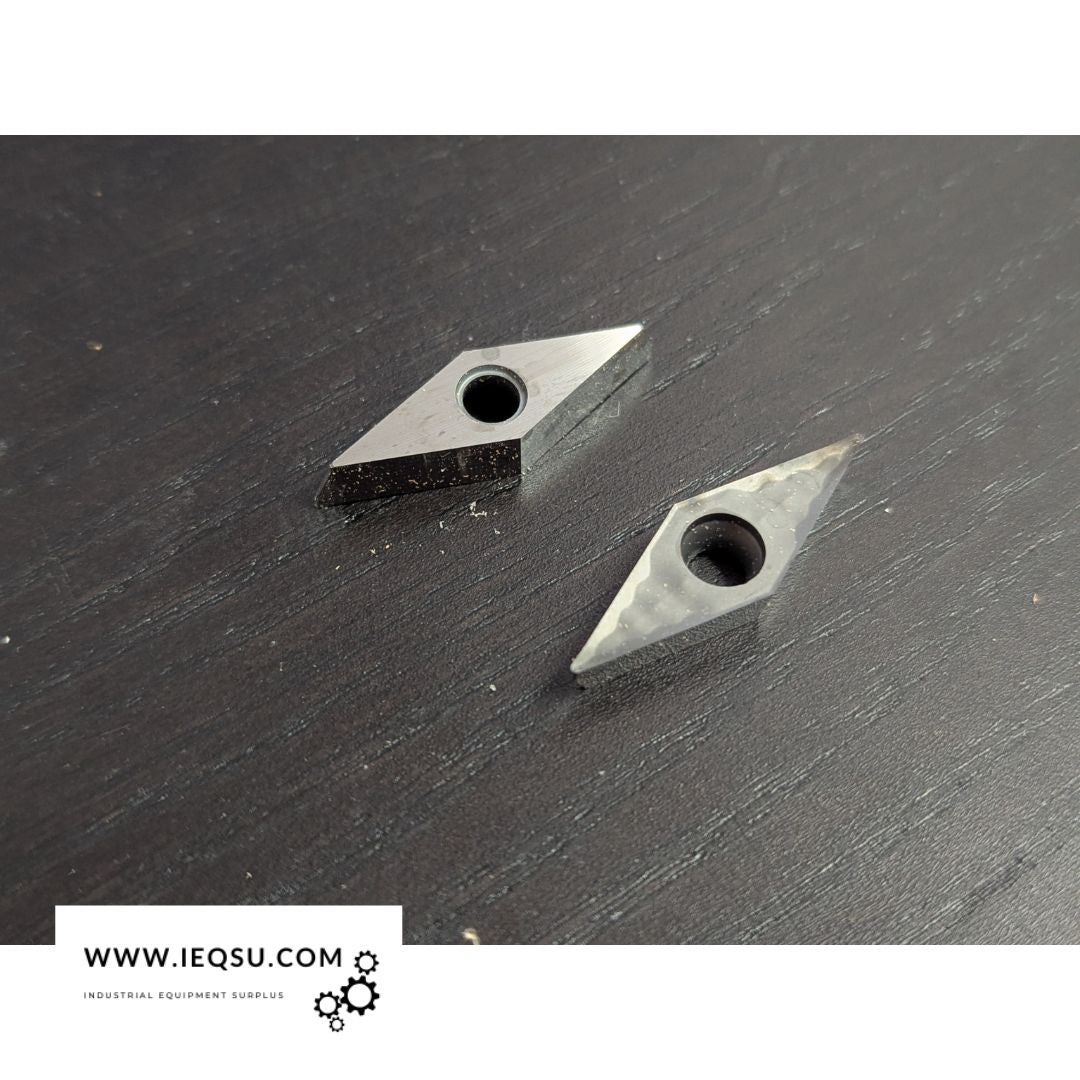

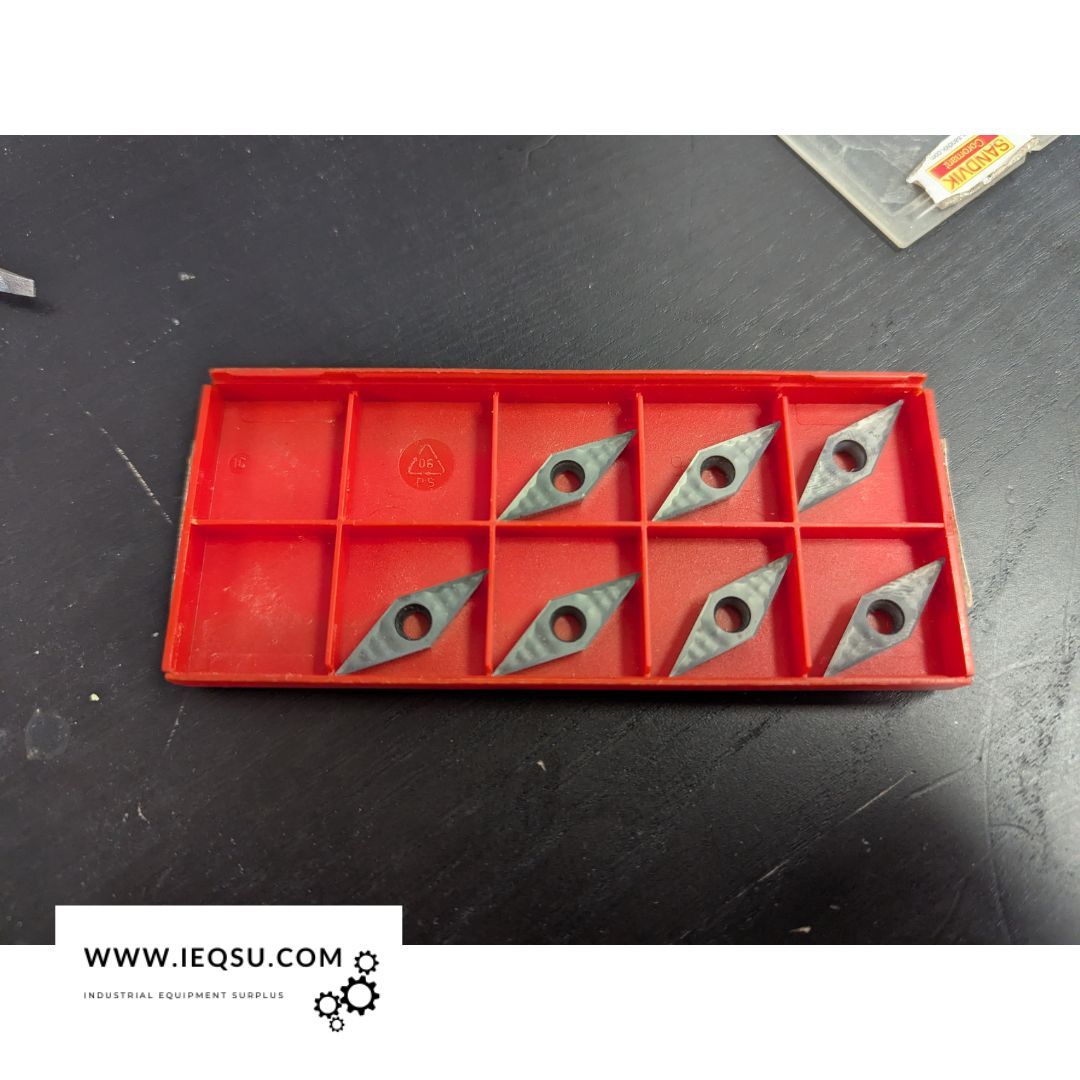

Sandvik VCGX 16-04-04-AL H10 Carbide Turning Inserts – 7 pcs / CoroTurn 107: 7 pieces Sandvik Coromant carbide turning inserts, model VCGX-16-04-04-AL H10 (CoroTurn 107 series). These high-quality rhombic inserts are made for precision turning, especially non-ferrous materials, aluminium, and soft metals where sharp cutting edges and fine surface finish are needed.

Features & Specifications:

Brand: Sandvik Coromant

Model: VCGX-16-04-04-AL H10
Sandvik Coromant
Insert family: VCGX-AL
Grade: H10 (sharpedged, high performance)
Shape / Style: Rhombic / Diamond (35° included angle)
Inscribed circle: ~9.525 mm
Thickness: ~4.763 mm
Corner radius: ~0.397 mm (small nose radius for fine finishing)
Cutting edge condition: Sharp (unworn)
