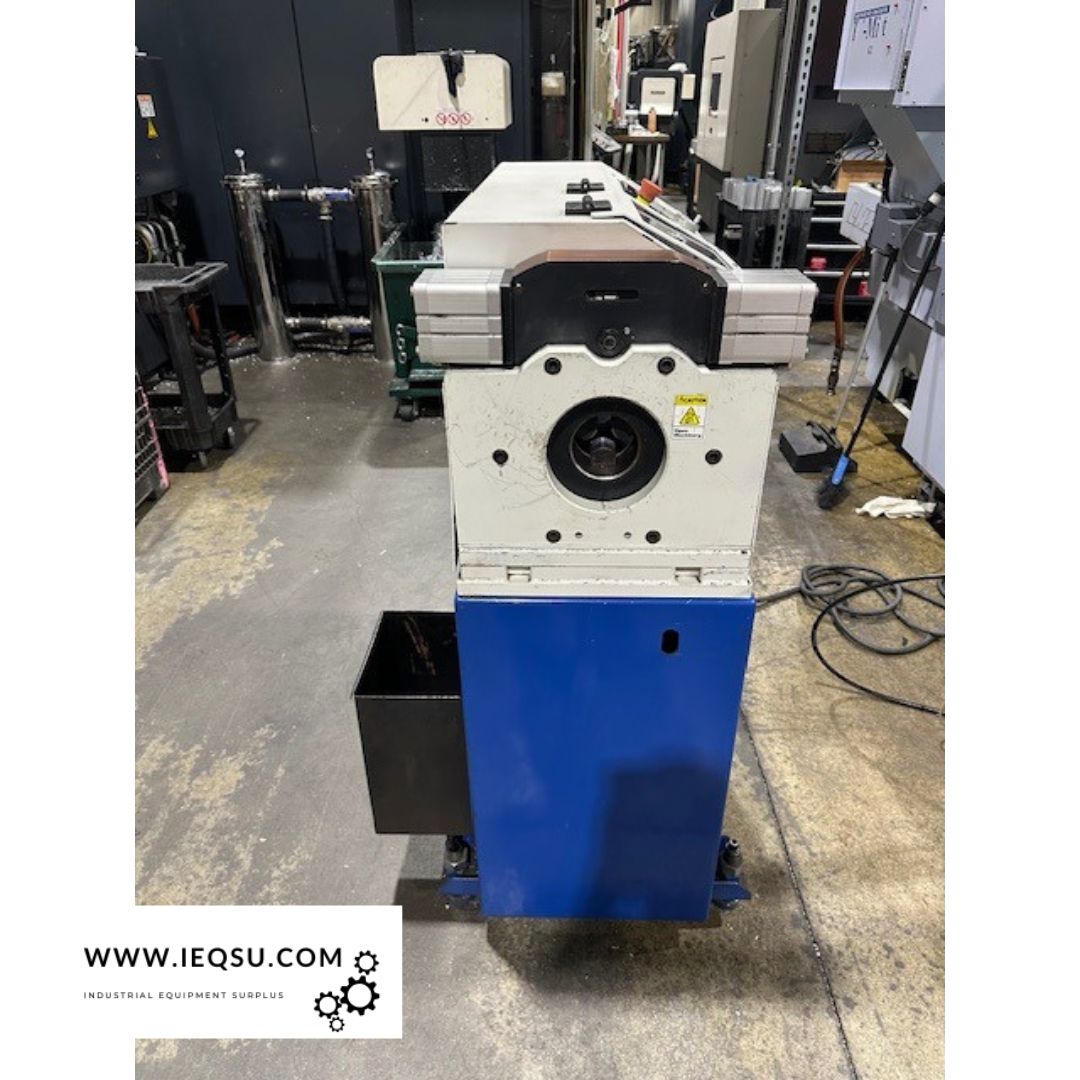

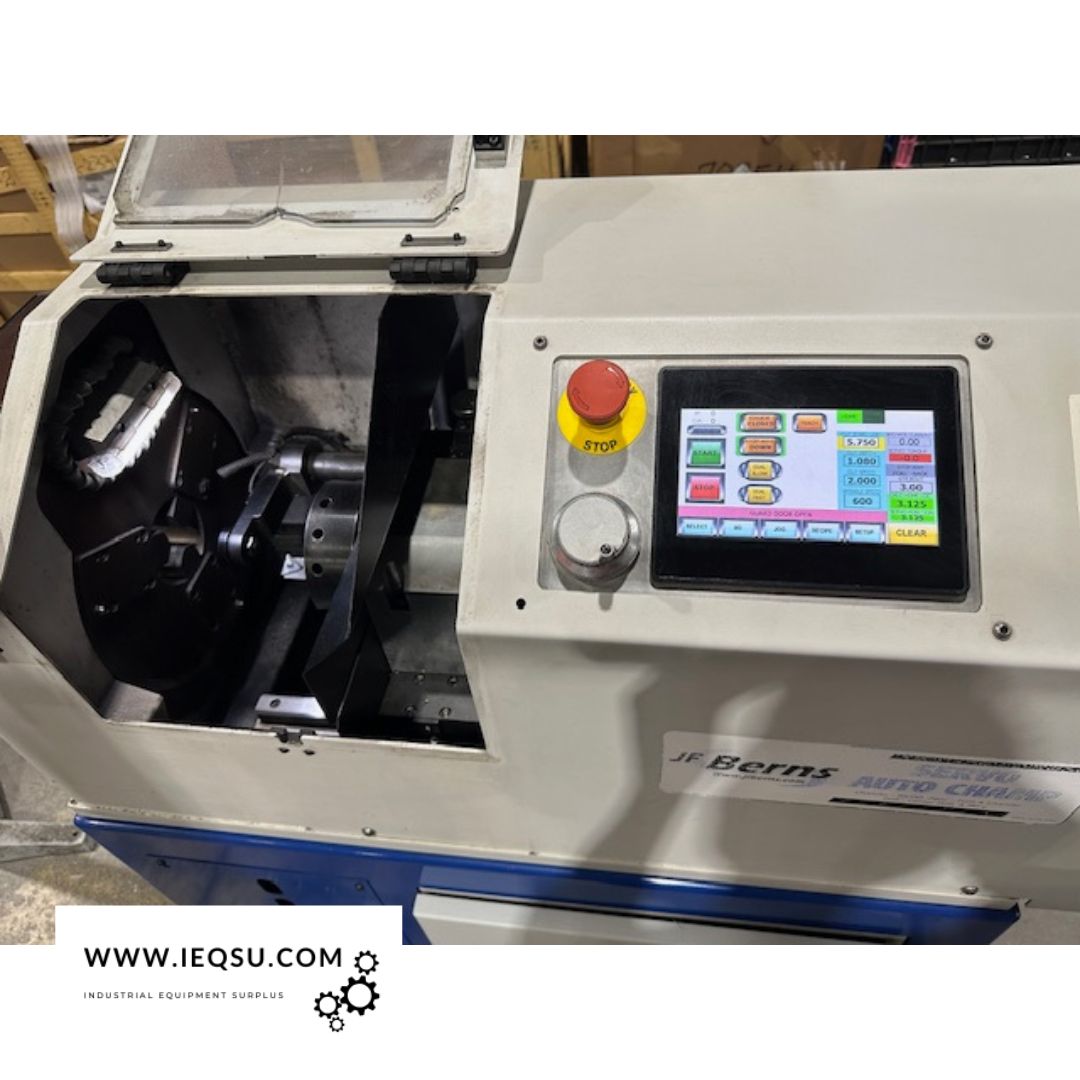

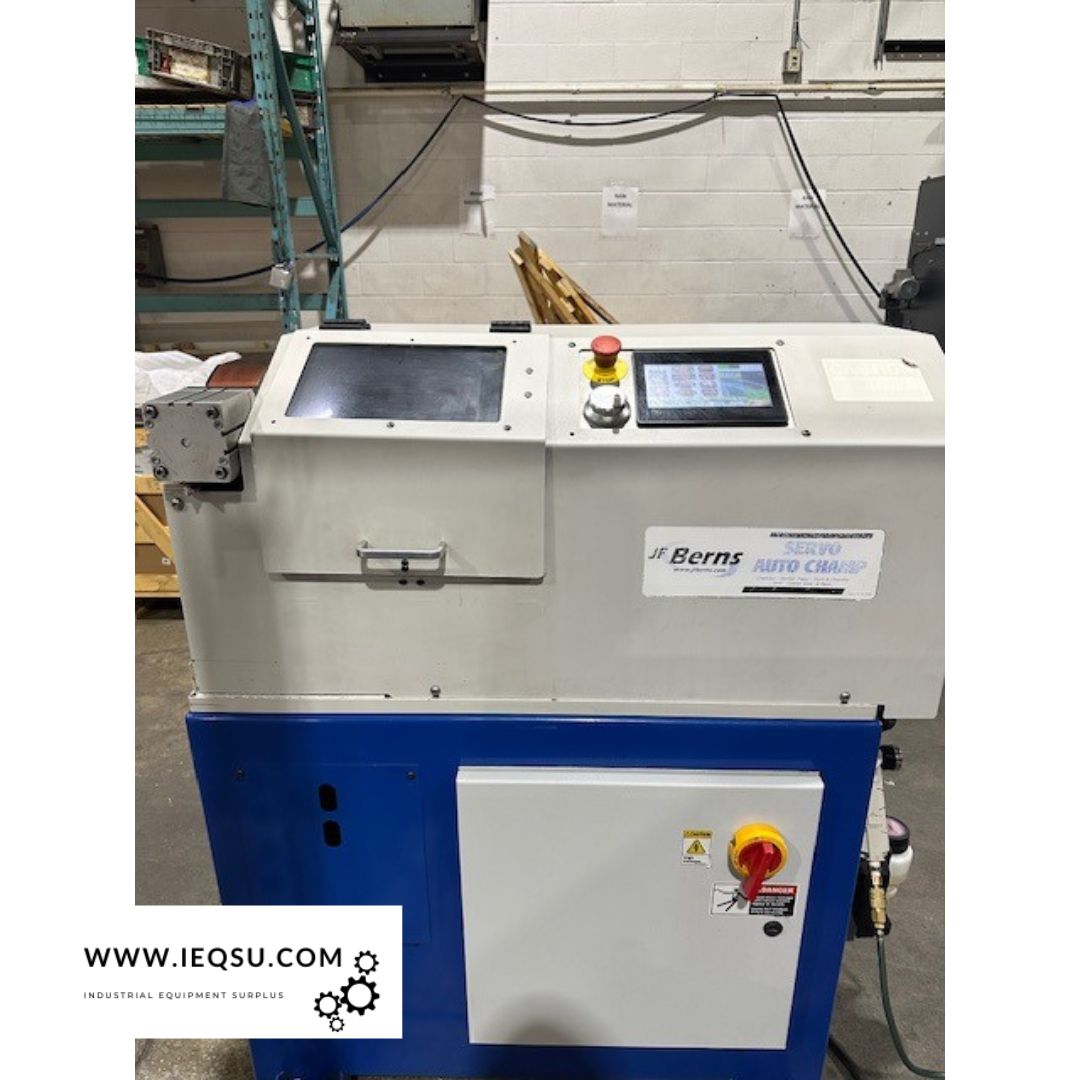

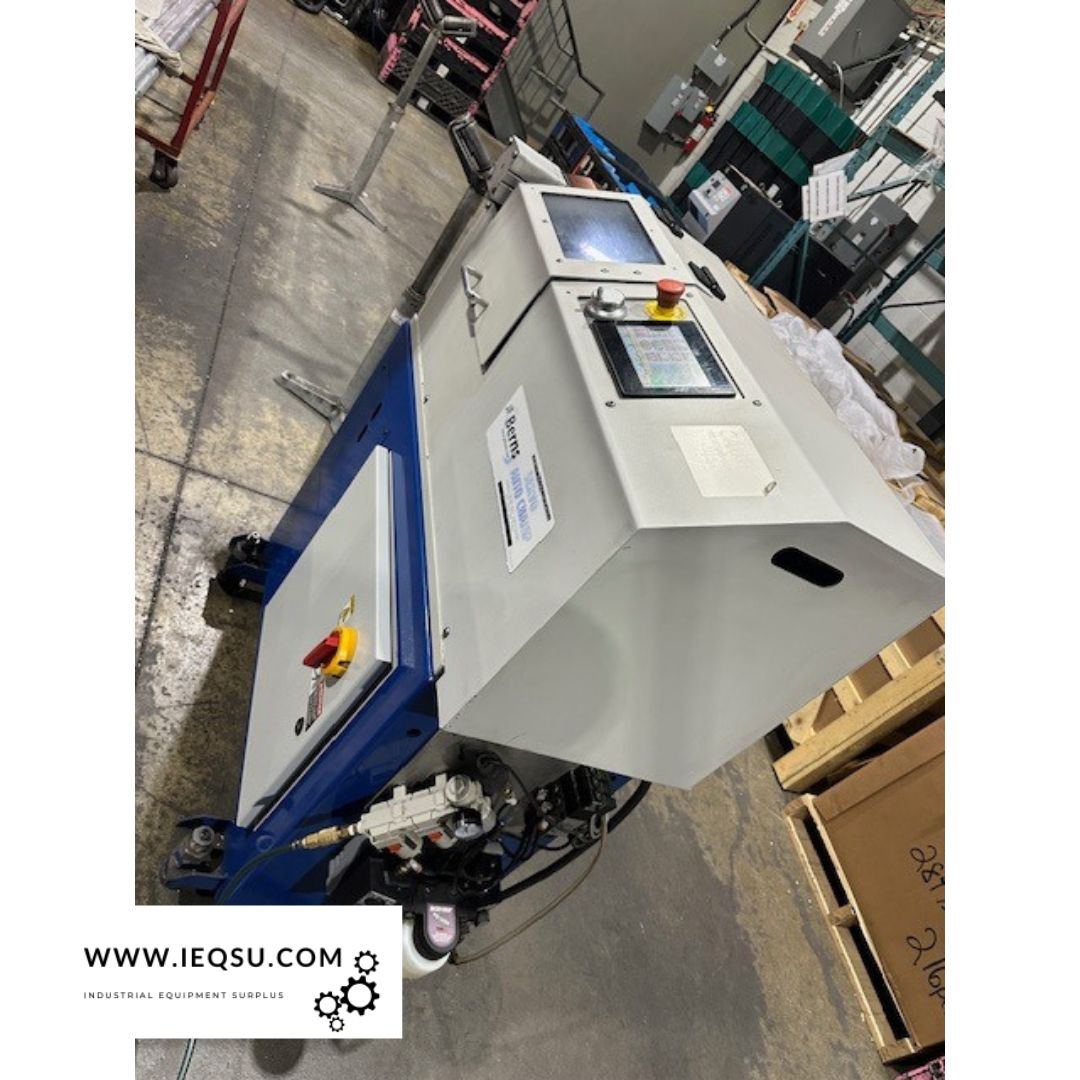

JF Berns Servo Auto Champ 2 – Precision Bar End Machine, Excellent Condition

Up for sale is a JF Berns Servo Auto Champ 2, a high-quality precision bar end machine. This machine is ideal for machining bars, turning and chamfering, and handling challenging materials like 4340 and 4140 steel. Designed for repeatable accuracy, fast setups, and versatile applications, it’s a perfect addition for machine shops and manufacturers.

Key Features:
* Rugged, chatter-free construction with wide base and THK linear bearings
* In-line 4:1 planetary gearbox spindle with taper roller bearings
* Optional Variable Speed
* Optional 3HP spindle motor
* Ball screw servo drive with Yaskawa servo motor

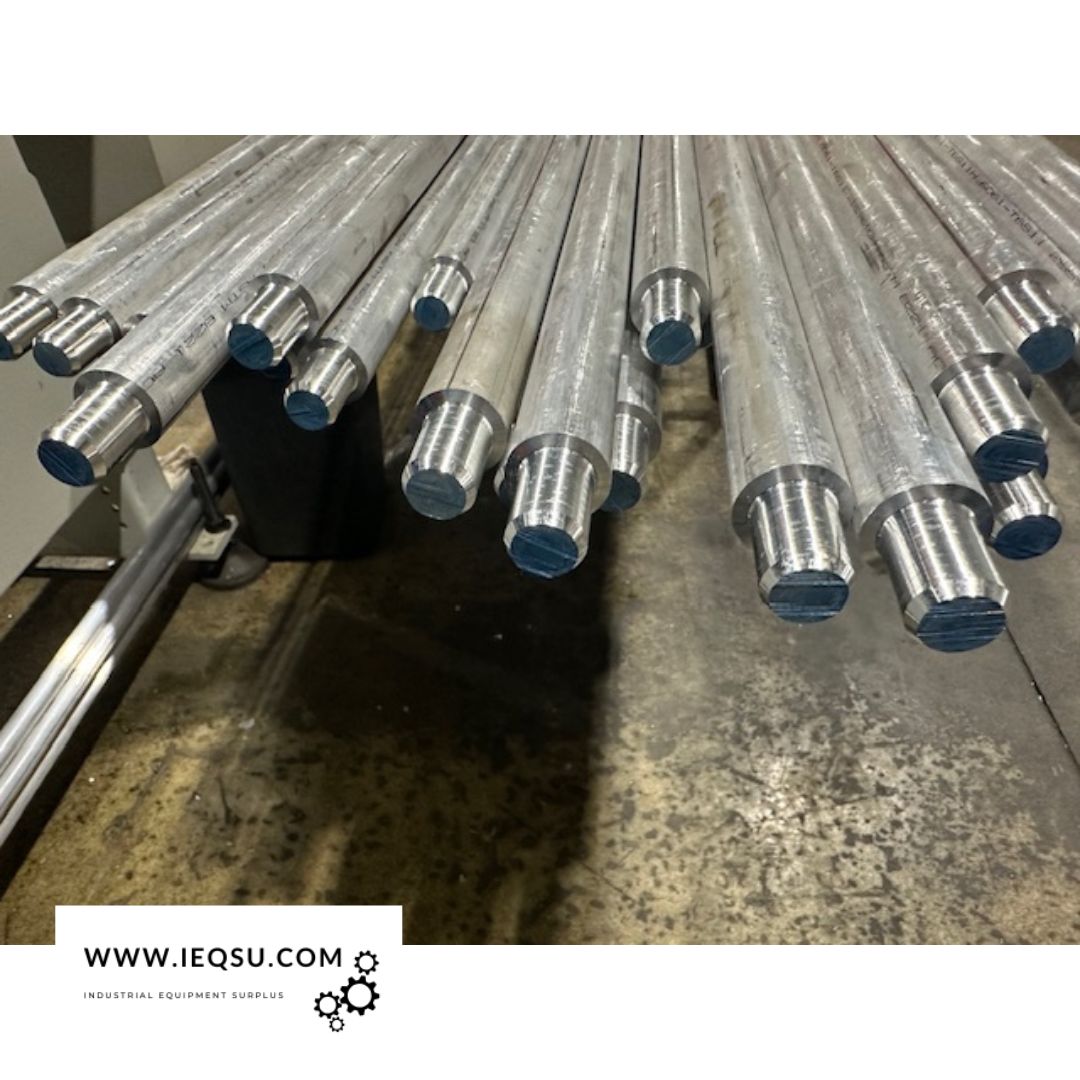

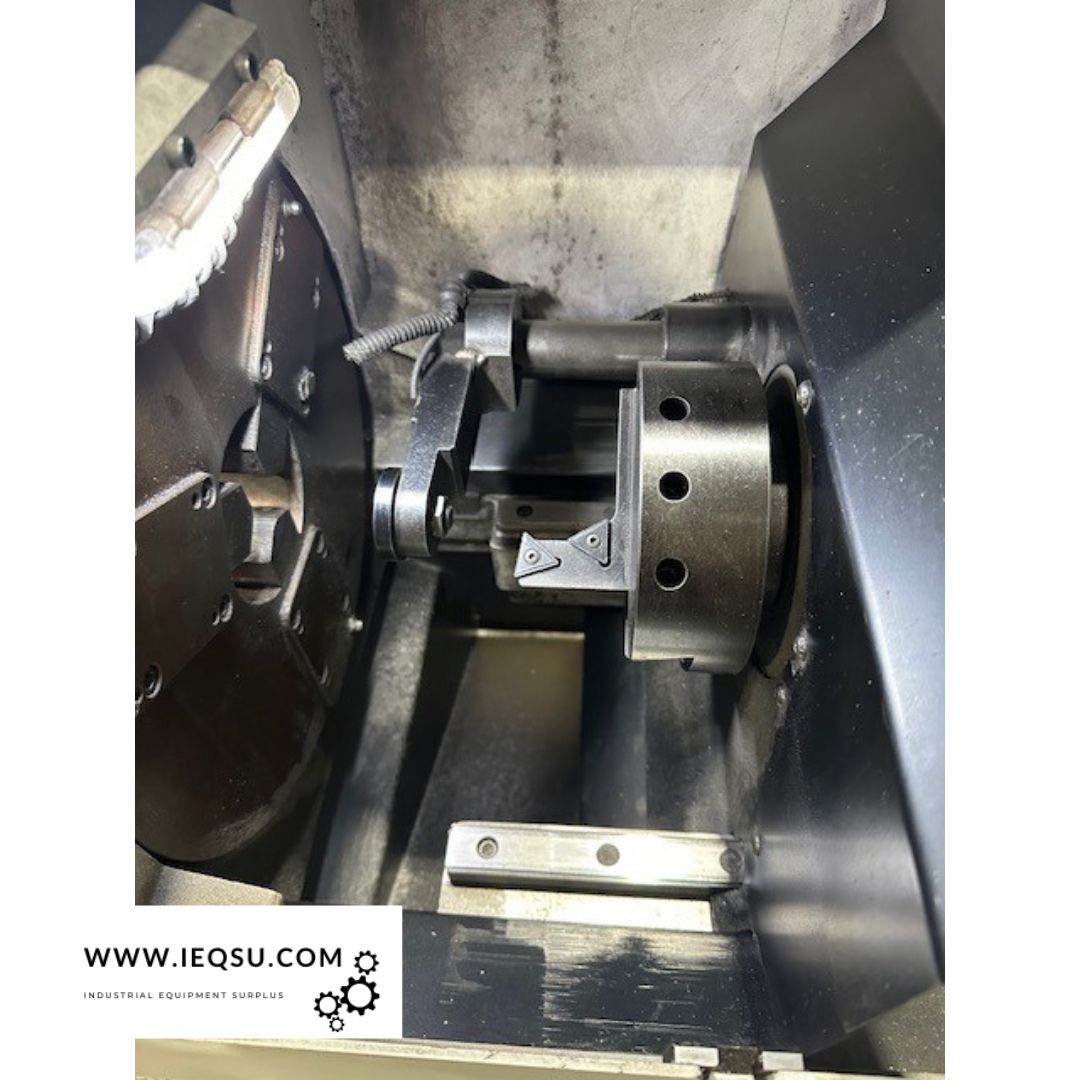

* Turn and chamfer tool, 1" turn length, 30 degree Chamfer
* Adjustable bar stick-out position (programmable)
* Self-centering clamping; no collets needed for standard bar diameters

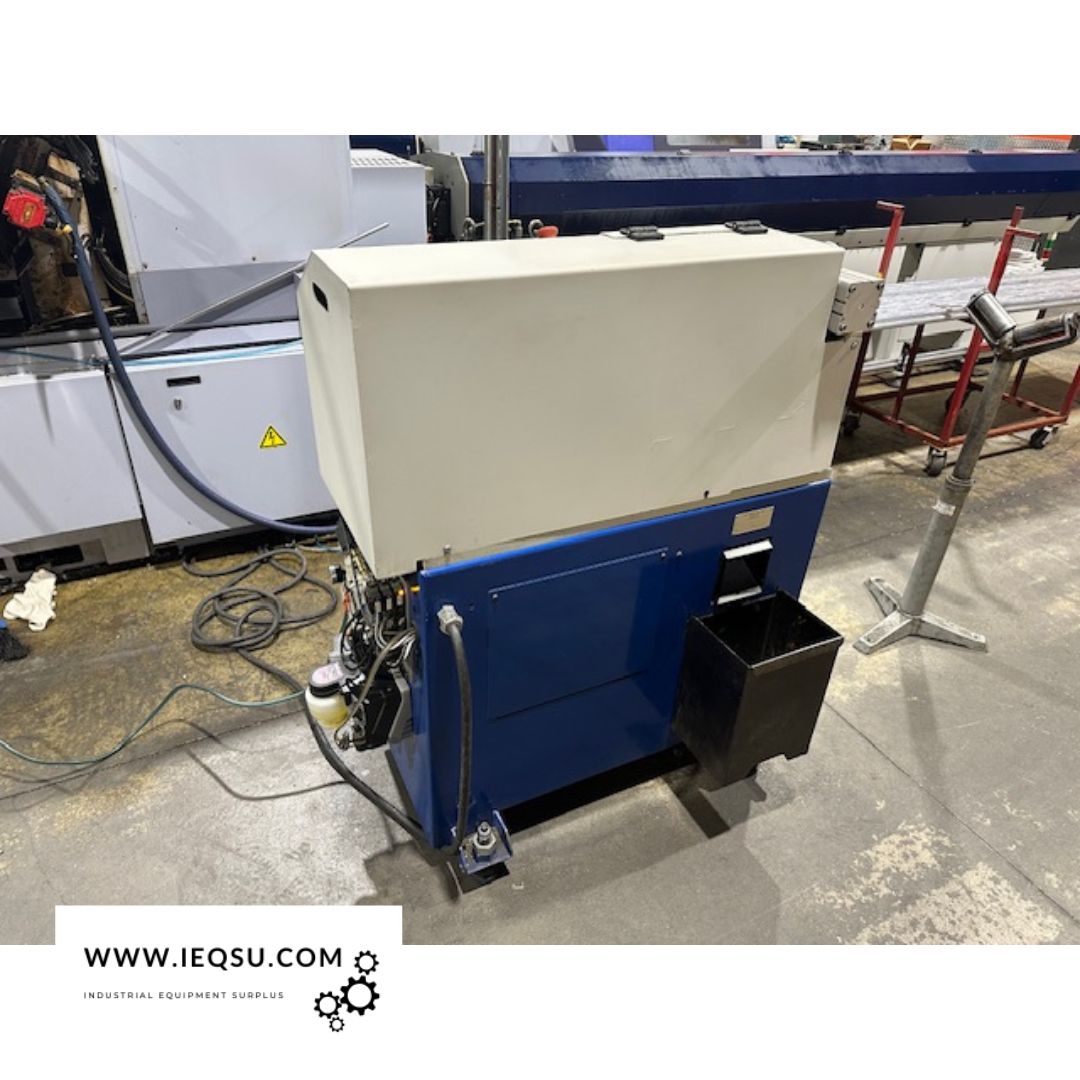

* Large chip chute and improved chip management

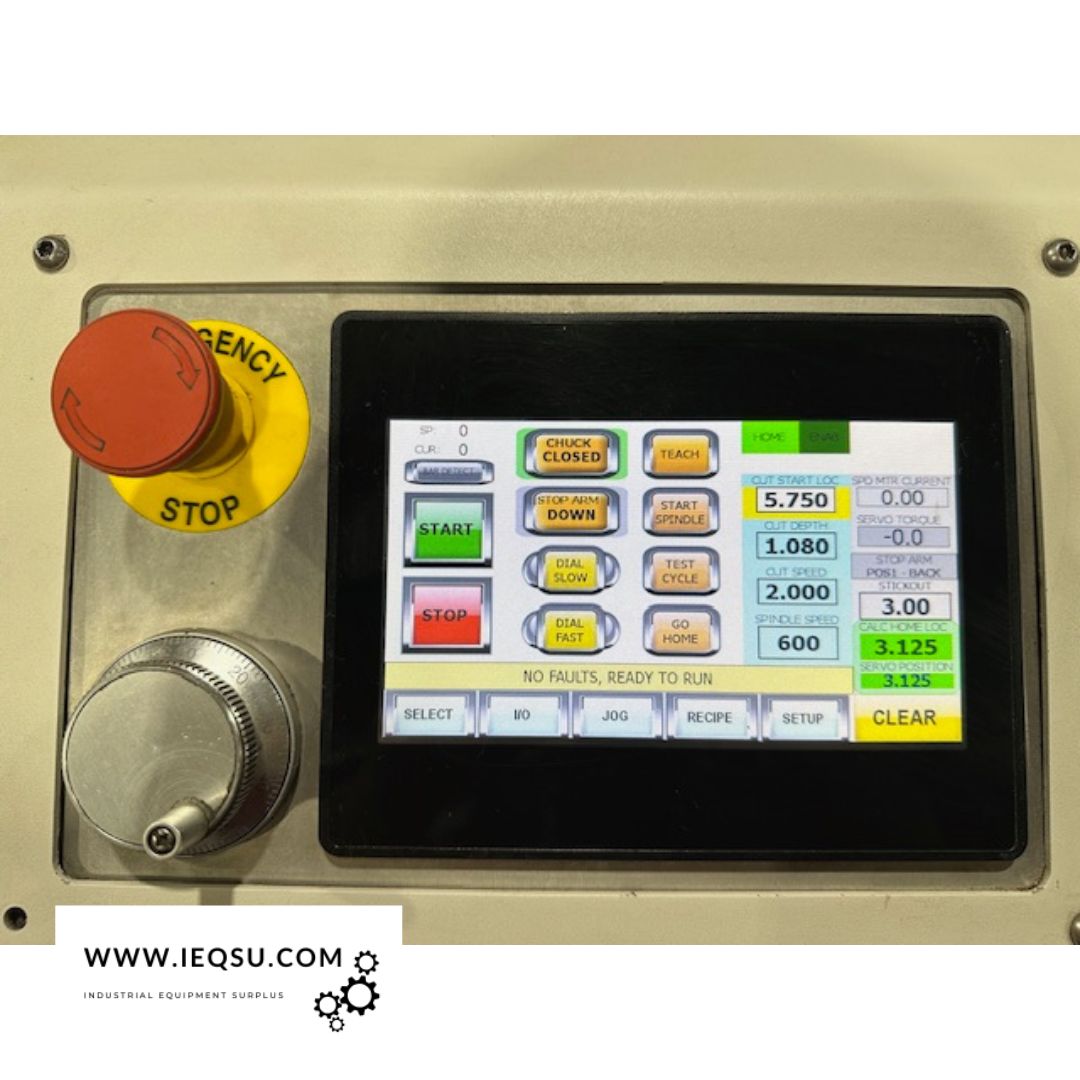

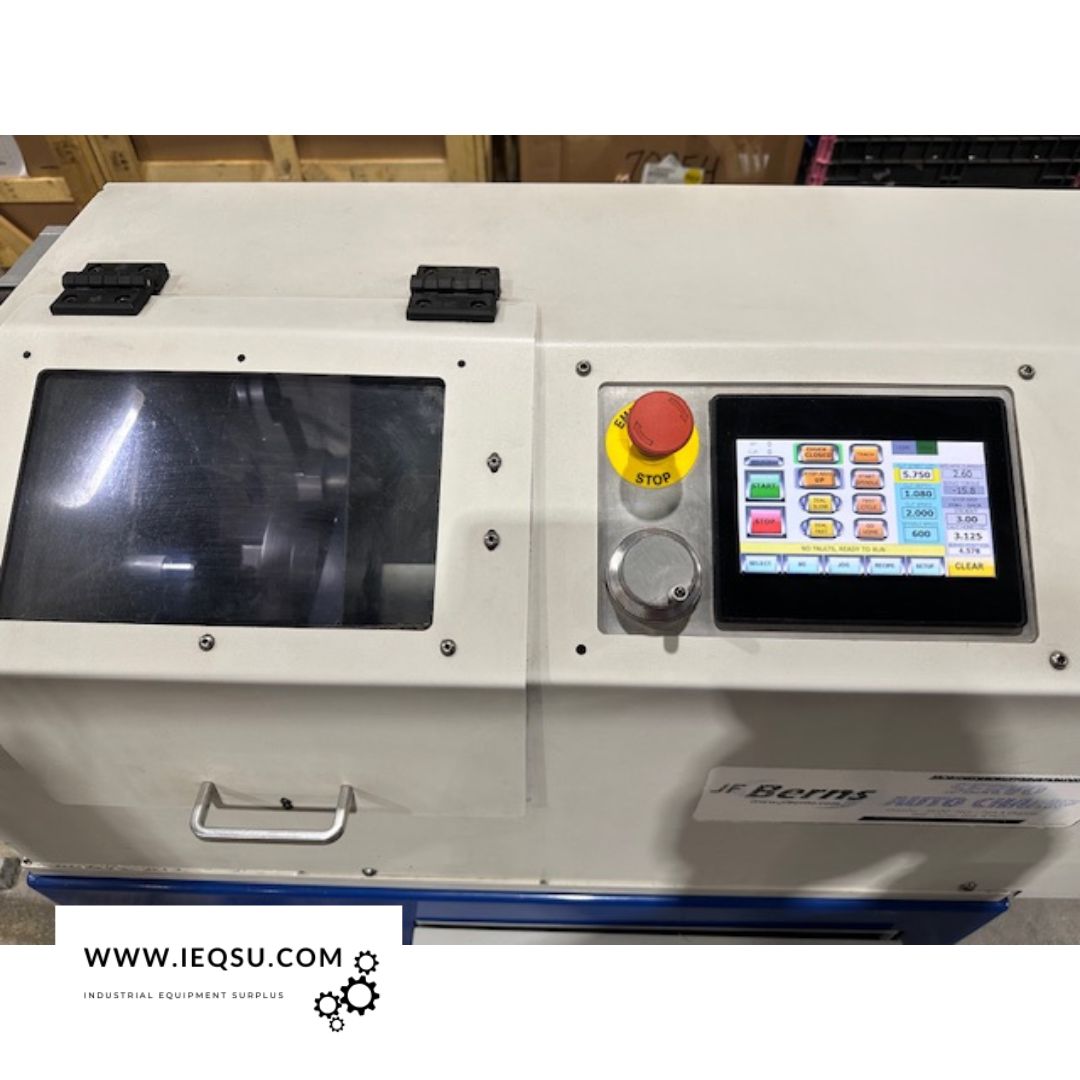

* 7” TFT color touch screen with 20 recipe storage
* Electronic handwheel adjustment and programmable spindle/feed speeds
* Auto bar detect – no pushbutton or foot pedal required
* Supports chamfer angles: 30°, 45°, 60°, and custom
* Micro-drop oil mister
* Adjustable bar stand

Part Capacity:
* Round: 0.25” – 3.00” standard (with adapters, 0.10” – 3.50”)
* Hex: 0.25” – 3.00” standard
* Square: 0.25” – 2.00” (requires adapter)
* Minimum Length: 4.0” (with optional back stop, parts 2” – 2.9” possible)
* Maximum Length: Unlimited

Condition:
* In a professional shop environment
* Well-maintained, fully operational
