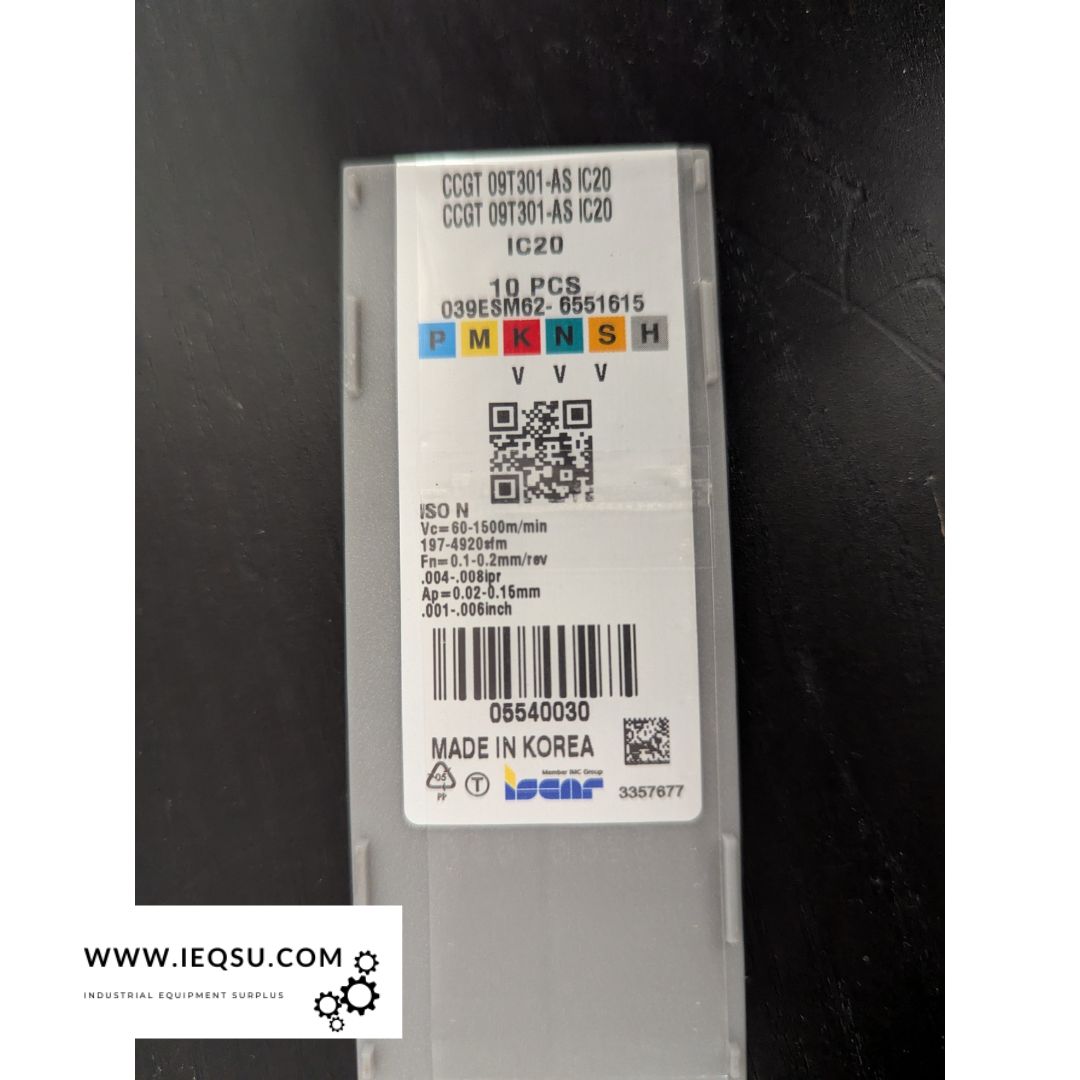

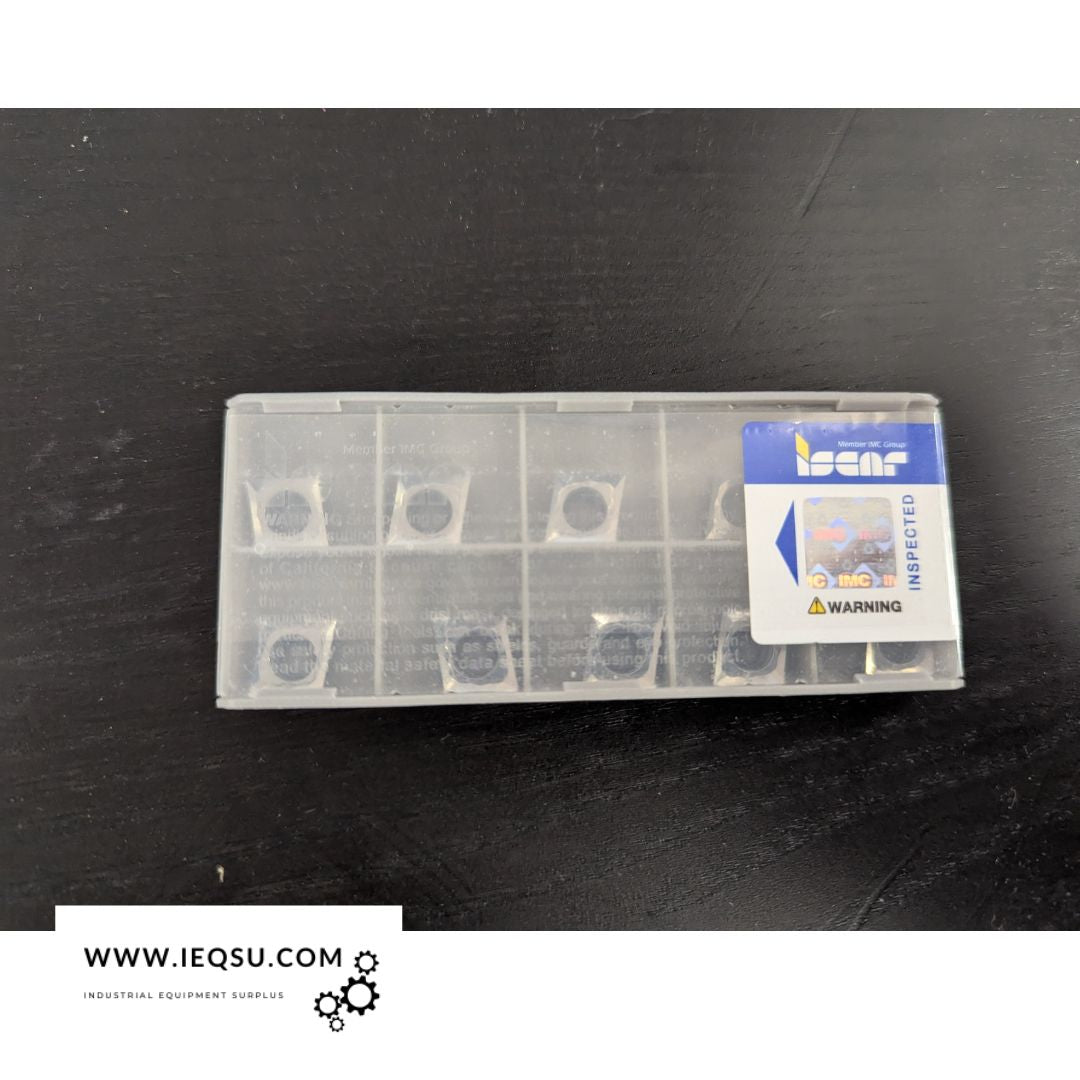

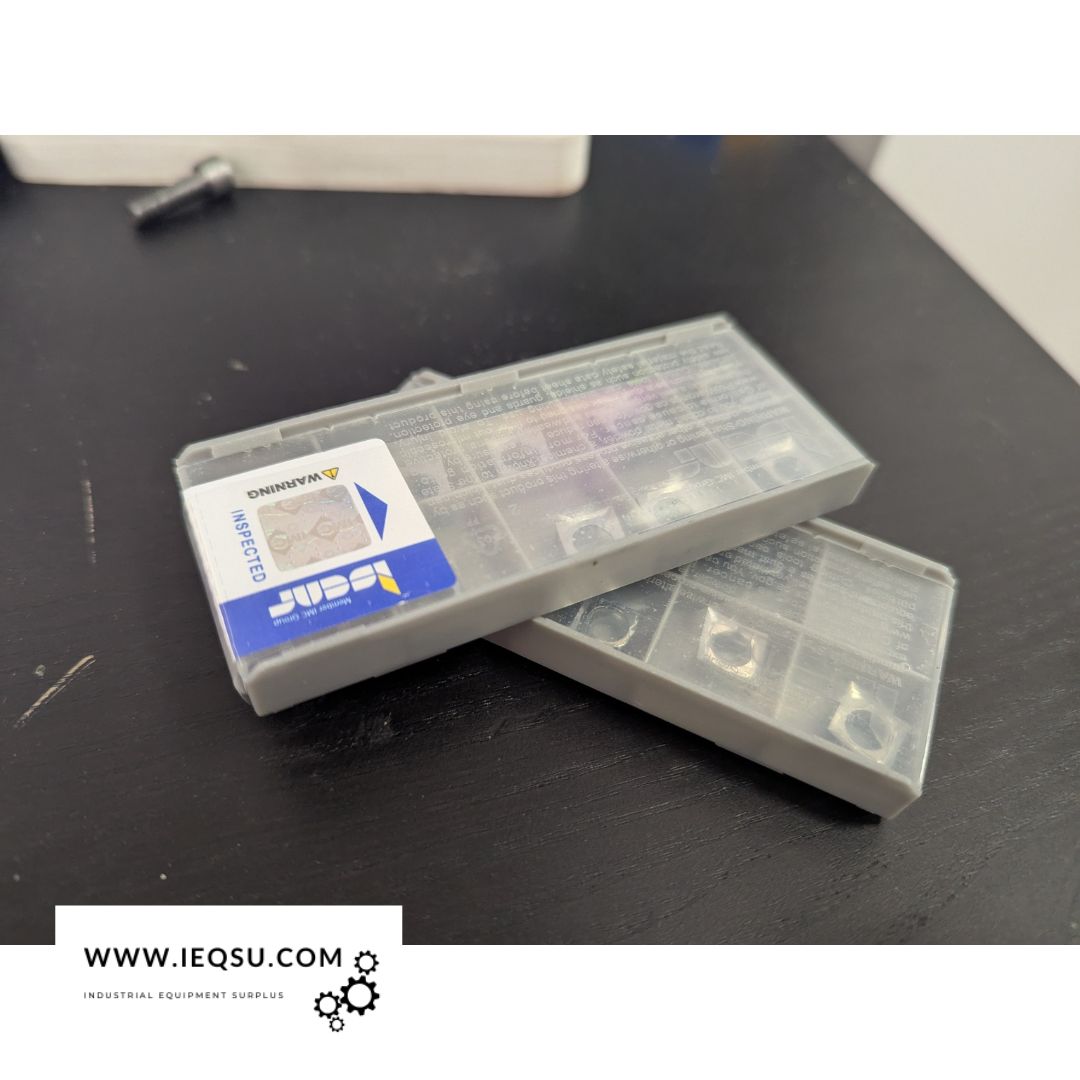

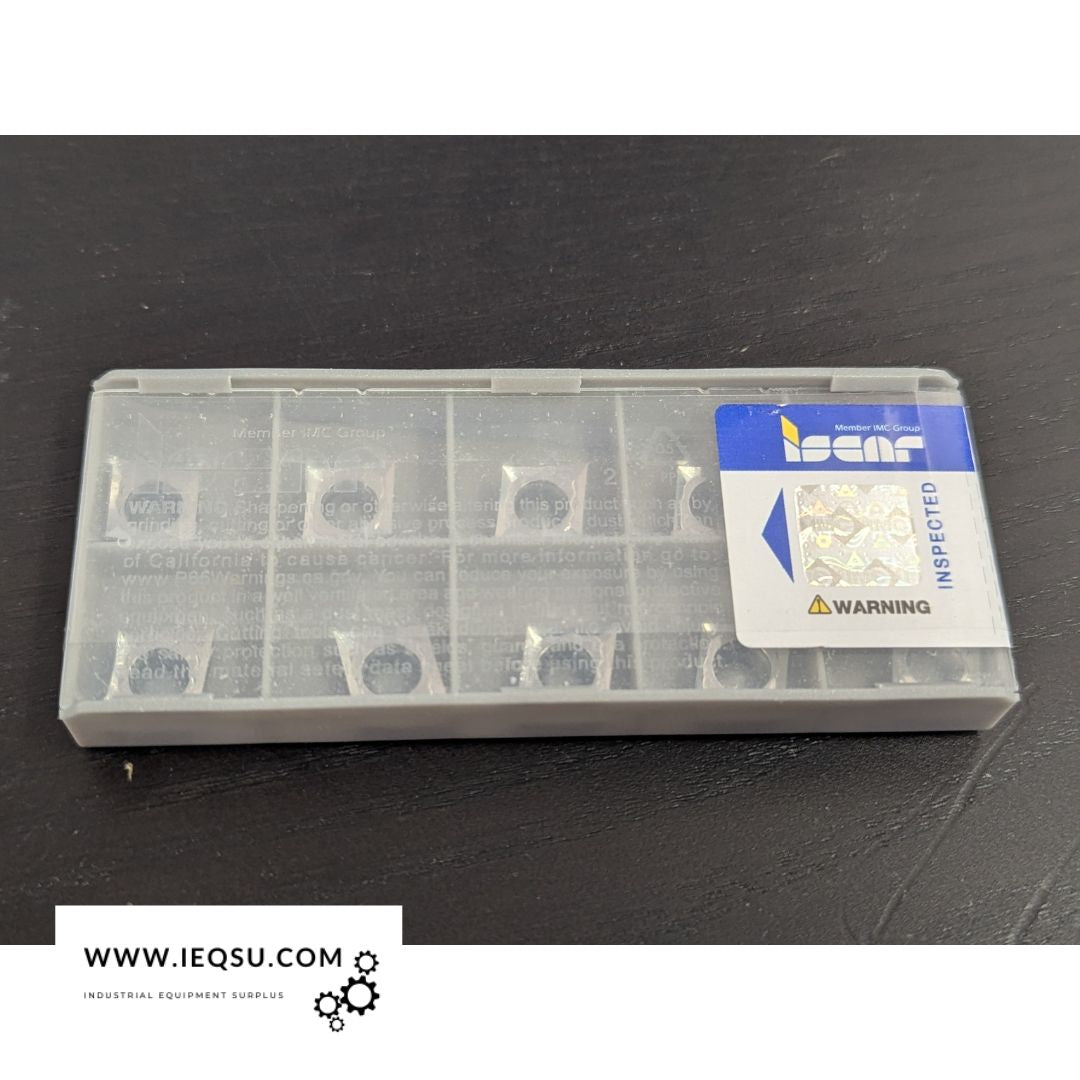

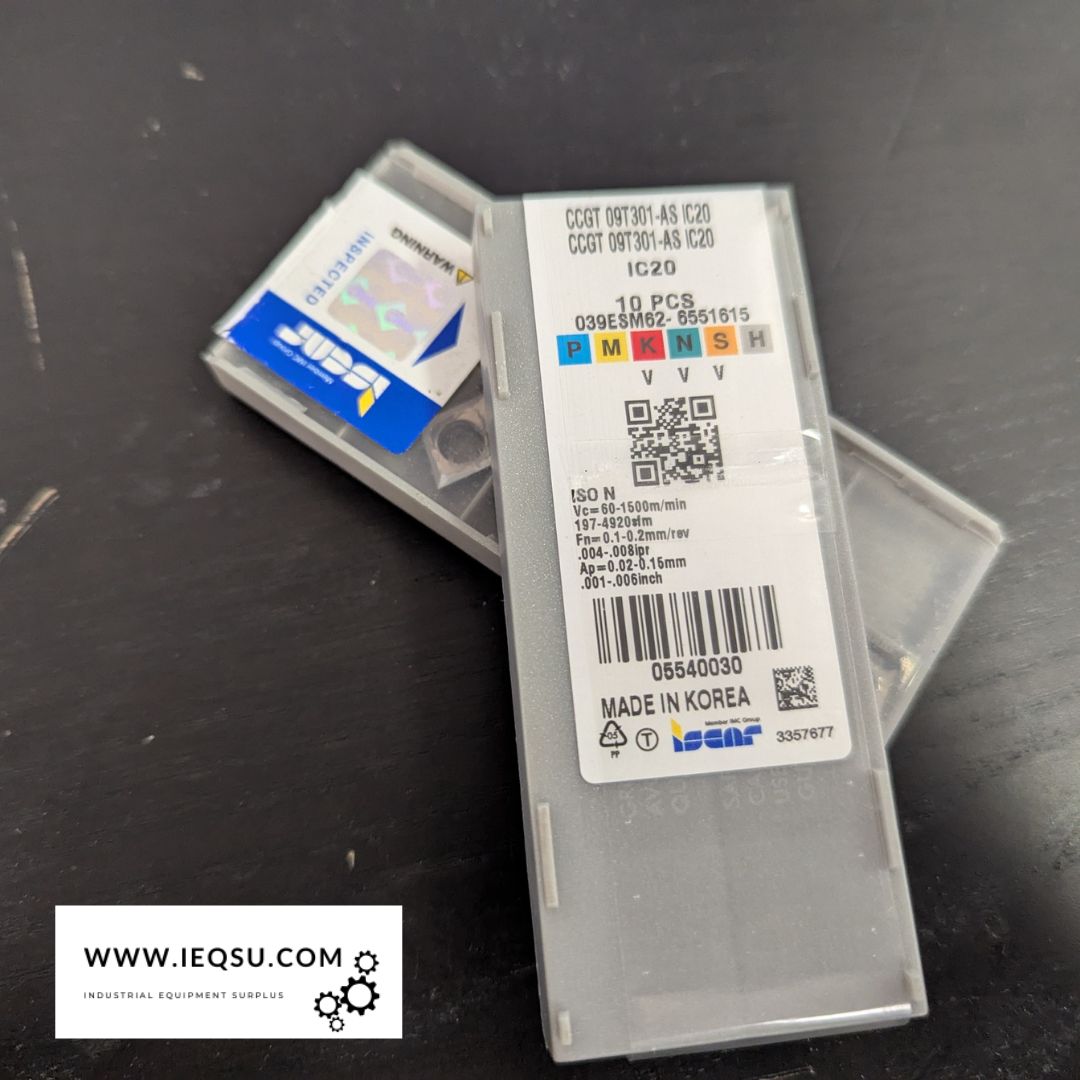

ISCAR CCGT 09T301-AS IC20 2x10 pcs – Carbide Turning Insert

ISCAR CCGT 09T301-AS IC20 2x10 pcs – Carbide Turning Insert

A high-precision, indexable carbide insert manufactured by ISCAR and designed for high-quality finishing applications, especially in aluminum and non-ferrous materials.

Key Features:

Insert Geometry & Design:

Shape: 80° rhombic (C-style) insert with a 7° clearance angle and a very positive rake angle, ideal for smooth, precise cuts in soft materials.
toolsunited.com
werkzeugservice.at

Insert size: L = 9.70 mm, Inscribed Circle (IC) = 9.52 mm, Thickness (S) = 3.97 mm.
werkzeugservice.at
kjv-webnuts.s3.eu-central-1.amazonaws.com

Corner radius (RE): 0.10 mm.
werkzeugservice.at

Chip Breaker & Mounting:

Equipped with a single-sided AS chip breaker, catering to efficient chip control.
toolsunited.com

Neutral hand orientation.
toolsunited.com

Mounting style: Counterbore for screws with a 40°–60° taper; fixing hole diameter approximately 4.4 mm.
toolsunited.com

Material & Grade:

Grade: IC20 – a tough carbide grade suited for a wide range of machining tasks.
toolsunited.com

Cutting Recommendations:

Depth of cut (ap): 0.50 to 2.50 mm

Feed rate (f): 0.10 to 0.25 mm/rev

Optimized for finishing operations, particularly on aluminum and similar soft, non-ferrous materials.
