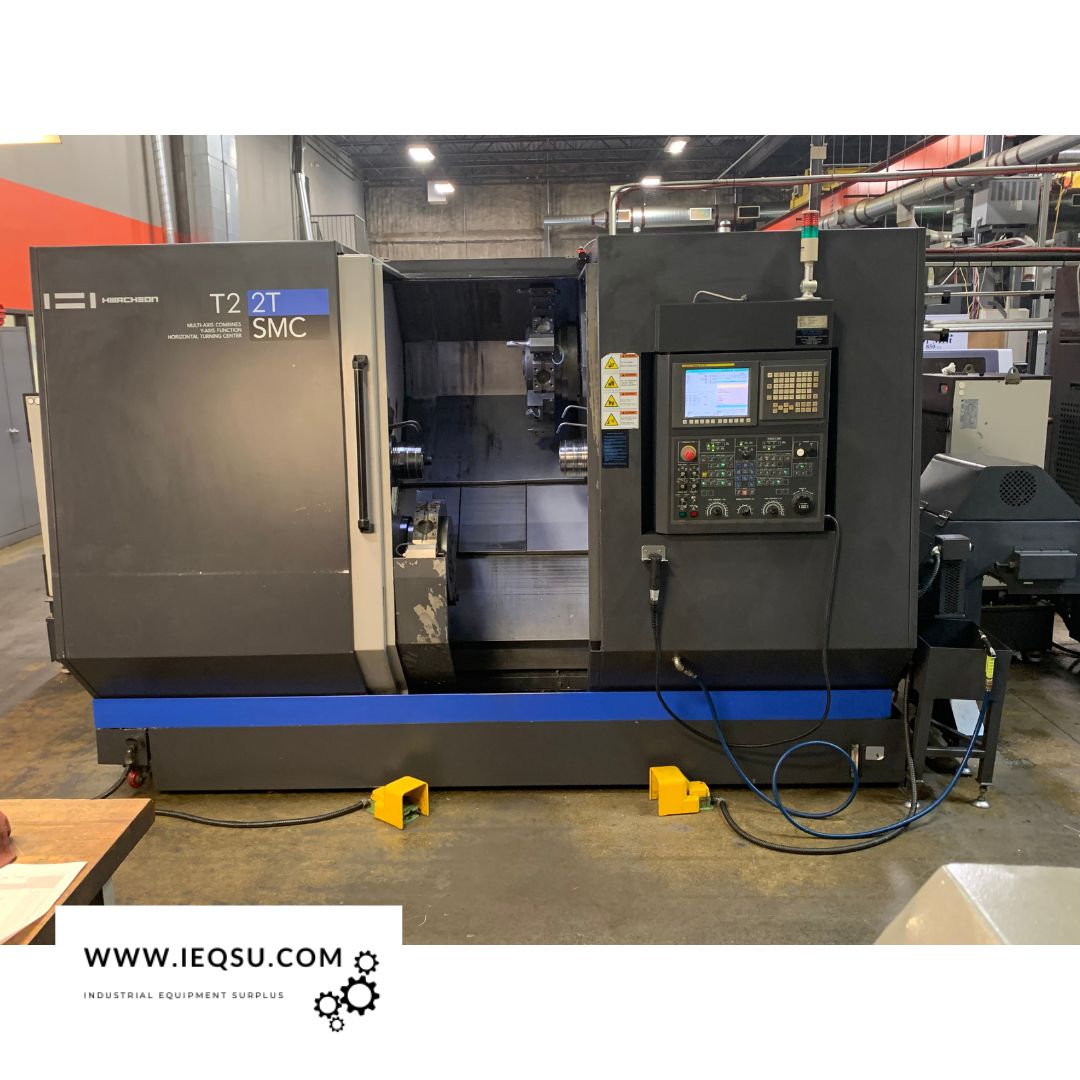

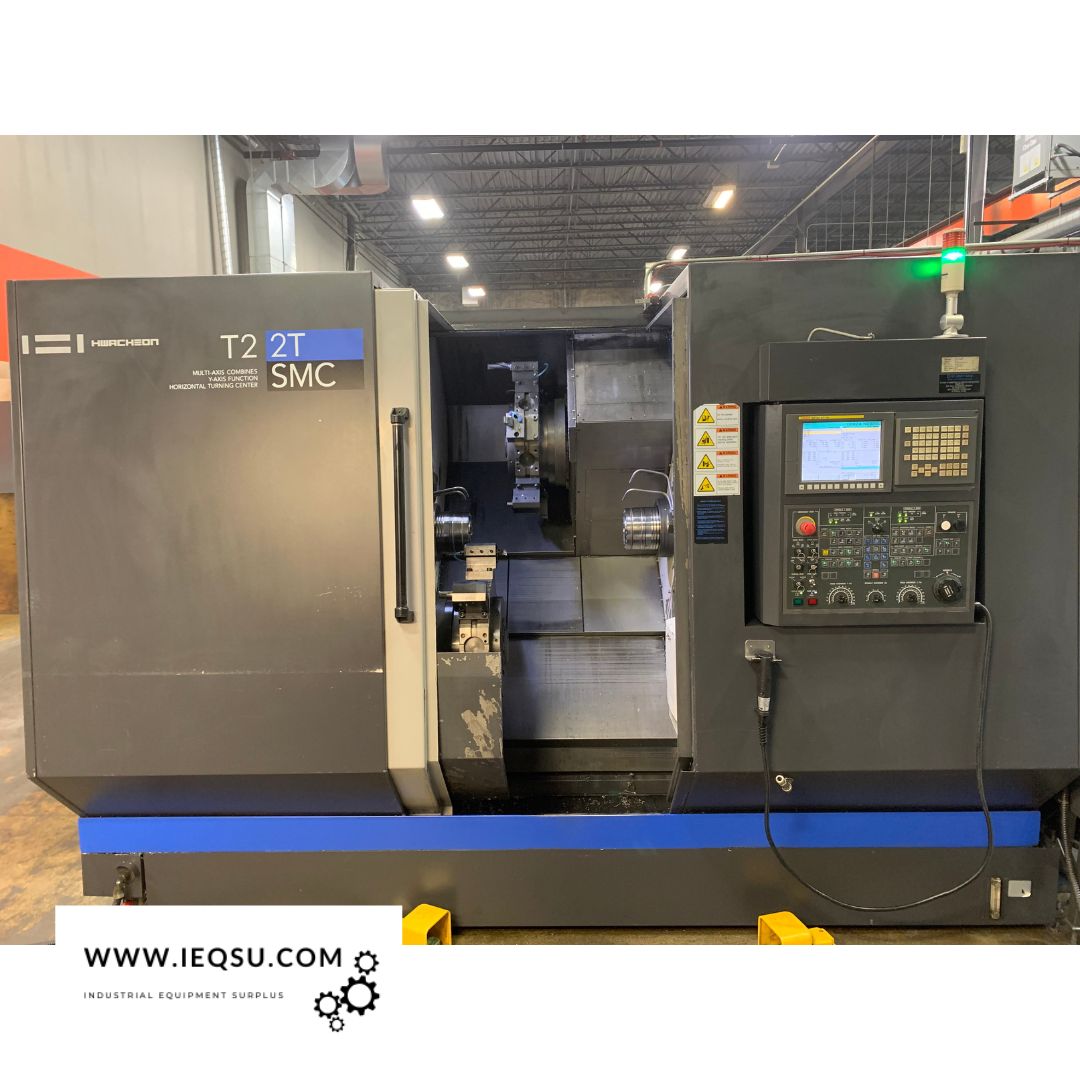

Hwacheon T2-2T

For Sale: HWACHEON T2-2T SMC – 7-Axis CNC Turning Center (2013)
Control: Fanuc Oi-TD | Year: 2013
Automation-Ready | Dual Turret | Live Tooling | High Power Production Lathe

Take your production to the next level with this powerful HWACHEON T2-2T SMC, a 7-axis CNC turning center engineered for complex part machining, fast cycle times, and high-precision multi-tasking. Built in 2013 and equipped with Fanuc Oi-TD control, this machine is ideal for heavy-duty, high-volume turning and milling operations in automotive, aerospace, and industrial manufacturing.

⚙️ Machine Specifications
Travels & Capacities:
X1 / X2 Travel: 245 mm

Z1 / Z2 Travel: 520 mm

Max Turning Length: 520 mm

Max Turning Diameter: 380 mm

Swing Over Bed: 450 mm

Turning Capacity (Main & Sub): 230 mm

Draw Tube Capacity: 65 mm

🌀 Main Spindle:
Power: 15 kW (20 hp)

Max Speed: 5,000 RPM

Collet Chuck: Hainbuch Spanntop Nova 65

C-Axis Resolution: 0.001°

Hydraulic Brake

🔁 Counter Spindle:
Power: 5 kW (20 hp)

Max Speed: 5,000 RPM

Chuck: Seoma 8” 3-Jaw Power Chuck

C-Axis Resolution: 0.001°

Hydraulic Brake

🔩 Turrets & Tooling:
Twin Turrets: 24 stations total (12 stations per turret)

Milling Capability: Live tooling, 6,000 RPM

Live Tooling Units: 4x 90° (“L”-type) spindles

Static Tooling: 16 tool holders (round and square shank adaptors)

🤖 Automation Included:

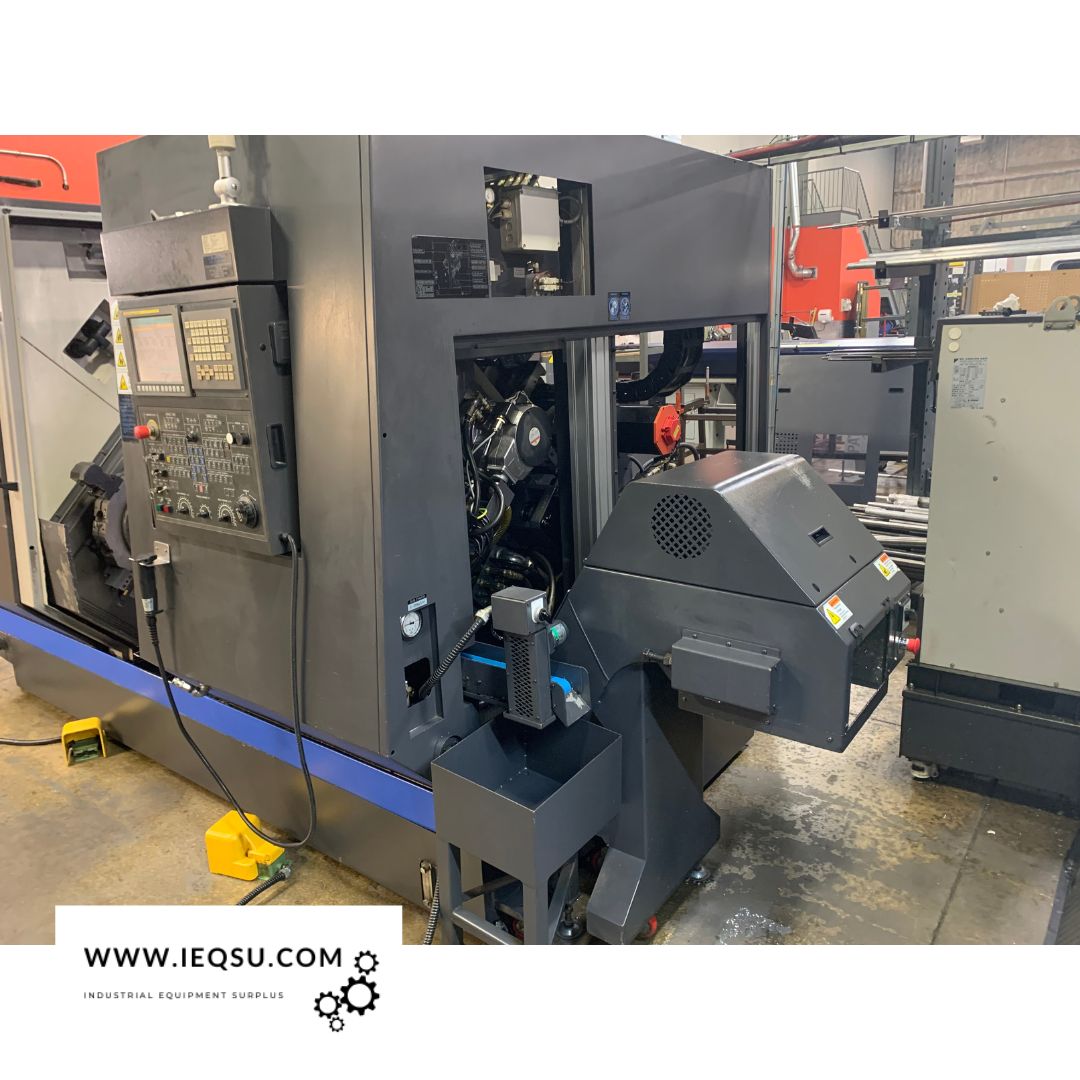

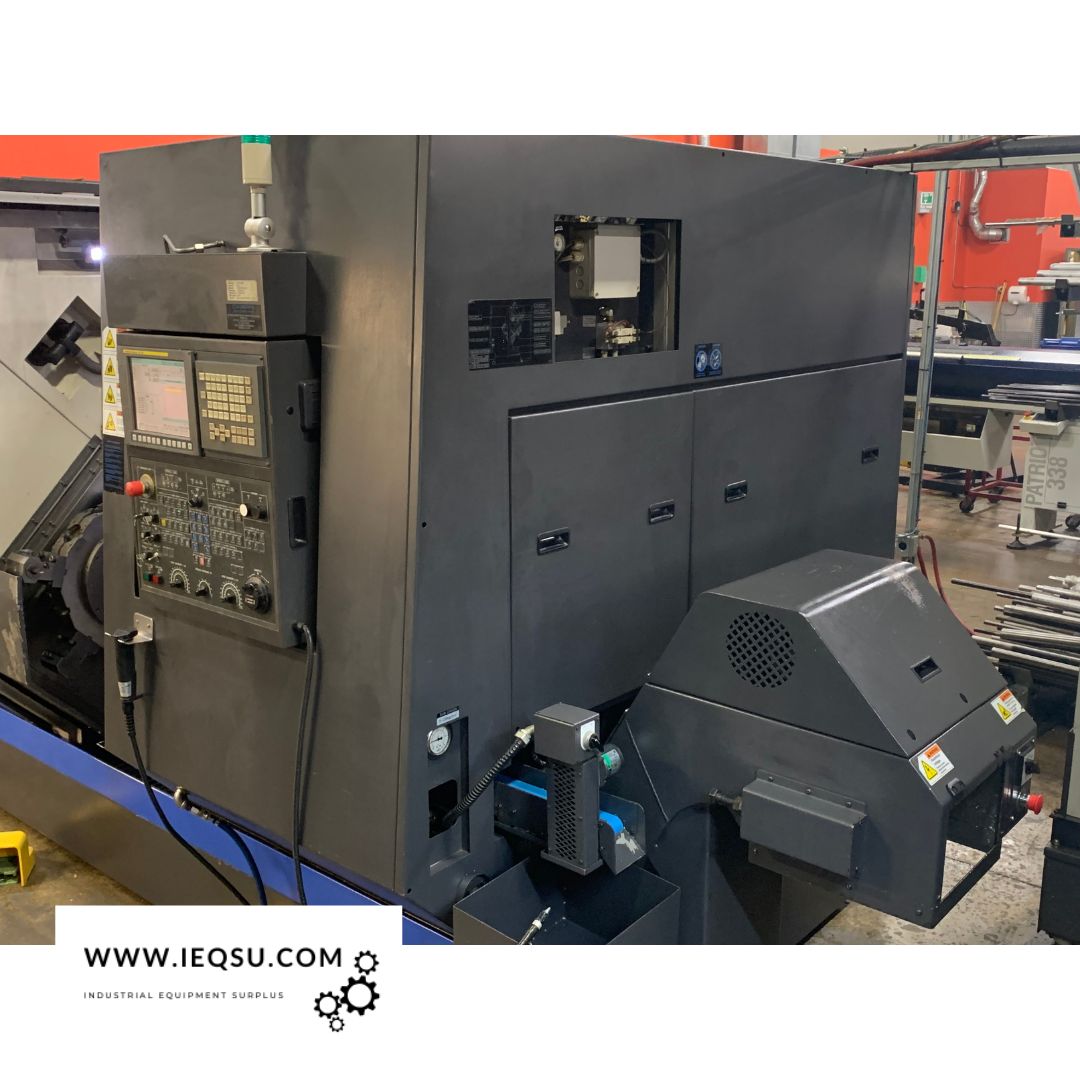

Workpiece Unloader

Workpiece Conveyor

📏 Machine Dimensions:
Length: 129” (3.28 m)

Width: 86” (2.18 m)

Height: 83” (2.11 m)

Weight: 19,841 lbs (9,000 kg)

✅ Highlights:
Full 7-axis simultaneous machining capability

High-speed live tooling and dual-spindle flexibility

Twin turret setup for reduced cycle times and multitasking

Automation-ready with conveyor and unloader system

Precision C-axis control with hydraulic braking for both spindles

Compact footprint for the power and capabilities offered

Condition: Excellent, well-maintained
