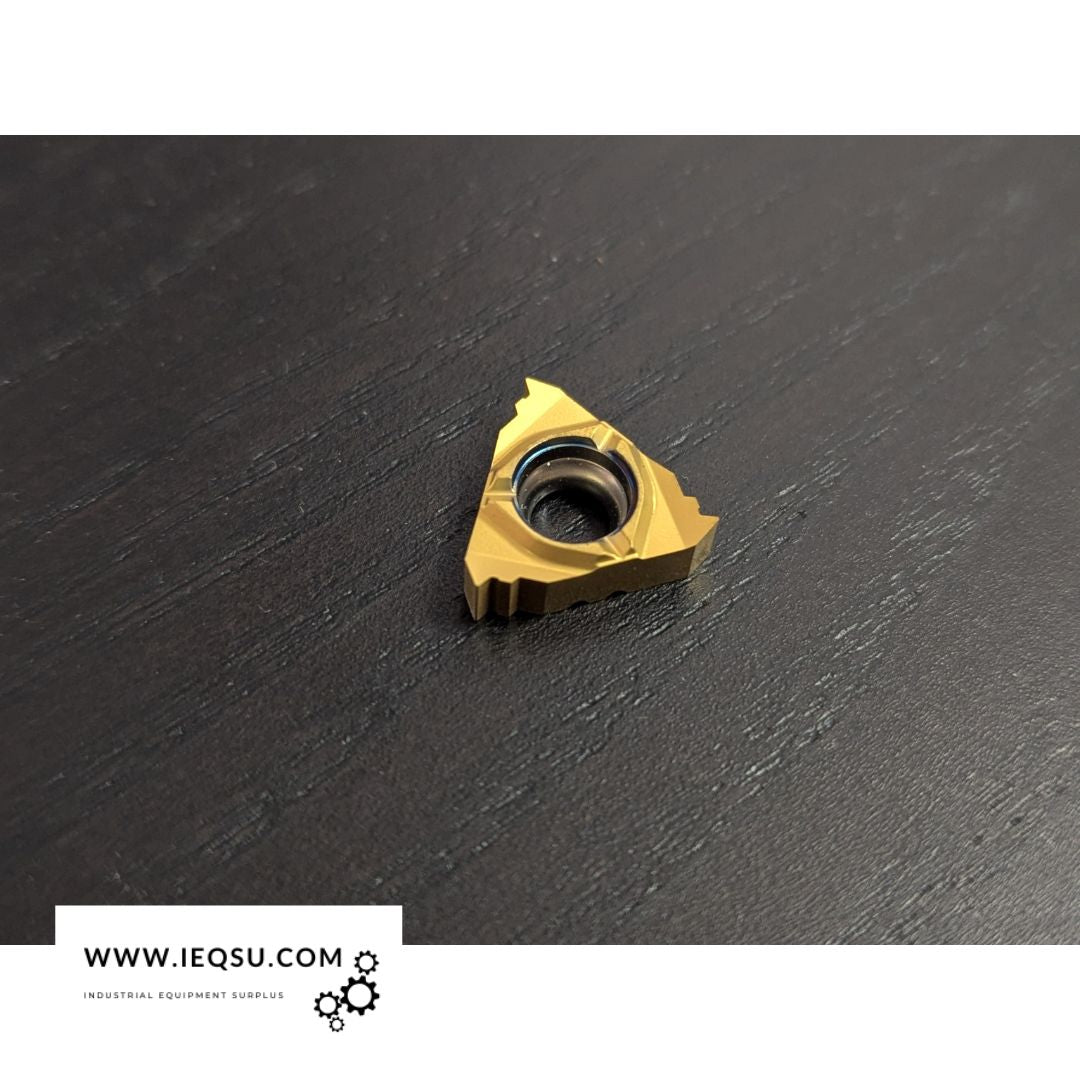

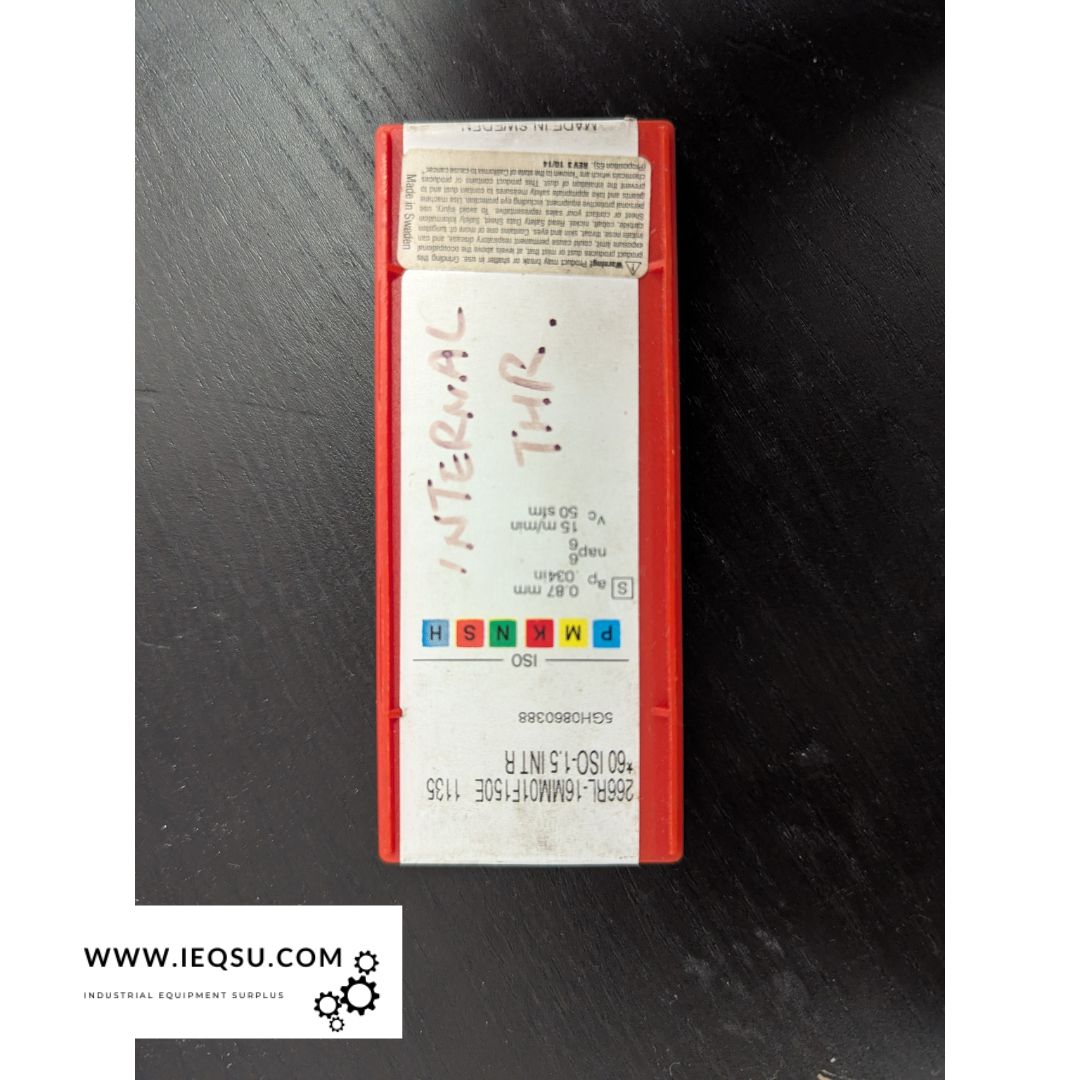

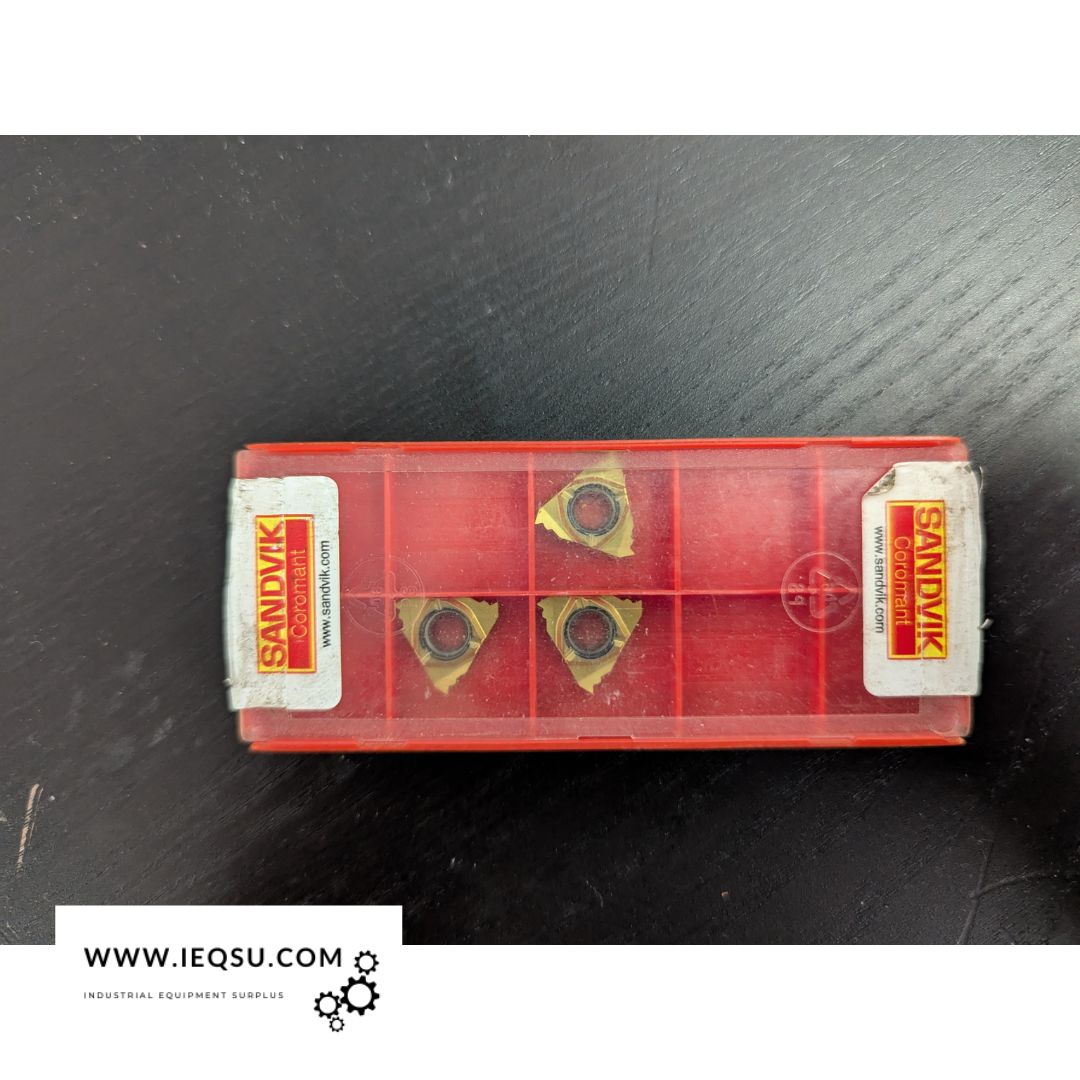

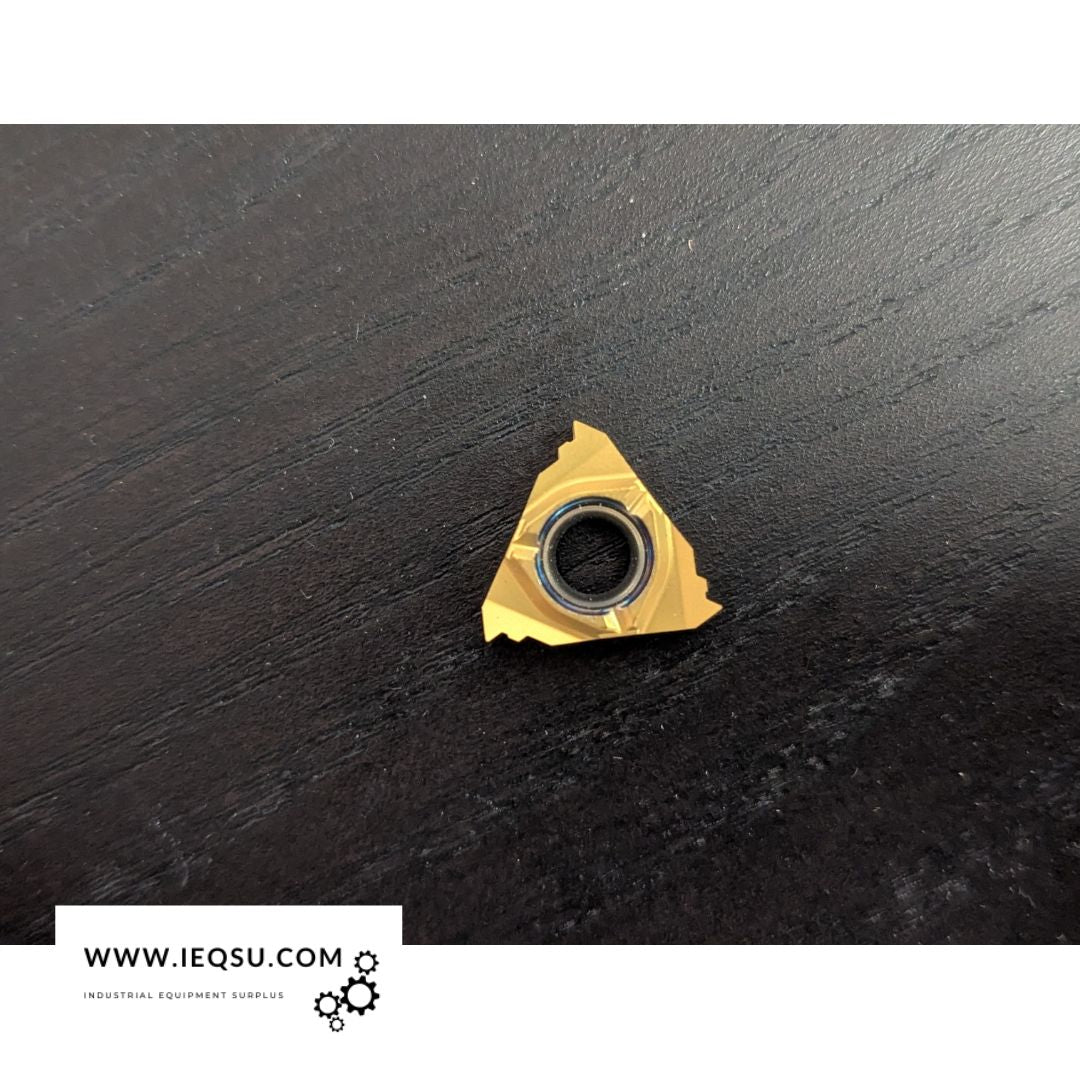

CoroThread® 266, model 266RL-16MM01F150E with grade 1135 Sandvik Coromant

Premium-quality thread turning inserts from the CoroThread® 266 series, tailored for high-precision internal metric threading. These solid carbide inserts are engineered by Sandvik Coromant and feature advanced PVD-grade performance.

Key Specifications

Insert Series & Designation: CoroThread® 266, model 266RL-16MM01F150E with grade 1135
Sandvik Coromant
exacttooling.com

Thread Pitch: 1.5 mm (Metric 60° full form)
southerncut.co.nz
crestonindustrial.com

Insert Type: Internal right-hand threading insert
crestonindustrial.com
southerncut.co.nz

Inscribed Circle (IC): 9.52 mm
crestonindustrial.com

Thickness (S): 3.97 mm
crestonindustrial.com

Material & Coating: Solid carbide with high-performance PVD coating (TiAlN + Chromium Oxide)
exacttooling.com

Flutes / Cutting Edges: Sharp-edge design for crisp thread profiles and consistent results
exacttooling.com
southerncut.co.nz

Performance Benefits

Multi-Edge Design: Three sharp cutting edges per insert—reducing downtime and maximizing productivity
southerncut.co.nz

Exceptional Stability: Engineered with a guide-rail interface and robust insert seat to ensure rigidity and accurate thread geometry
southerncut.co.nz

Superior Thread Quality: Ideal for producing precise internal threads with excellent surface finish across a variety of workpiece materials
