Agie Form 30

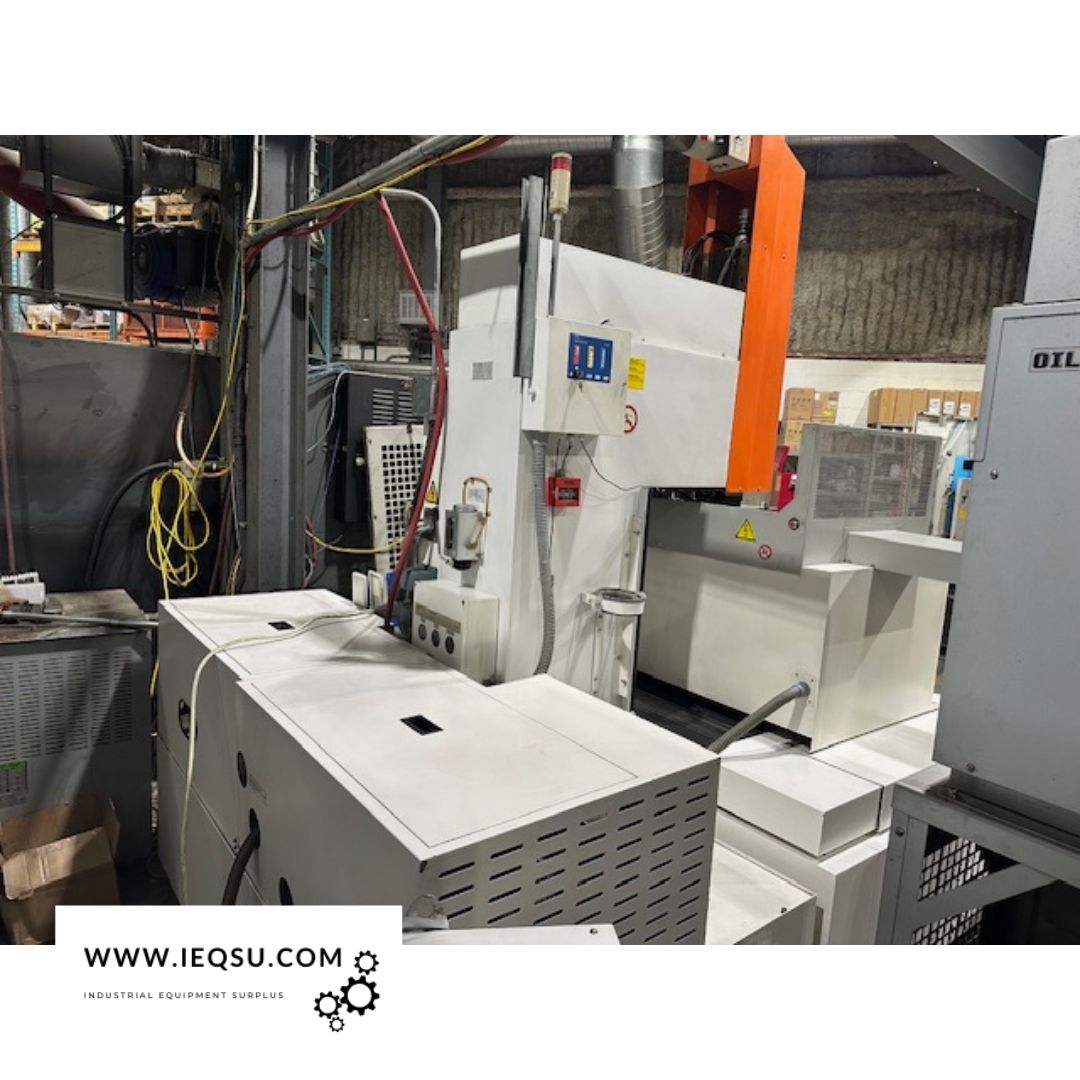

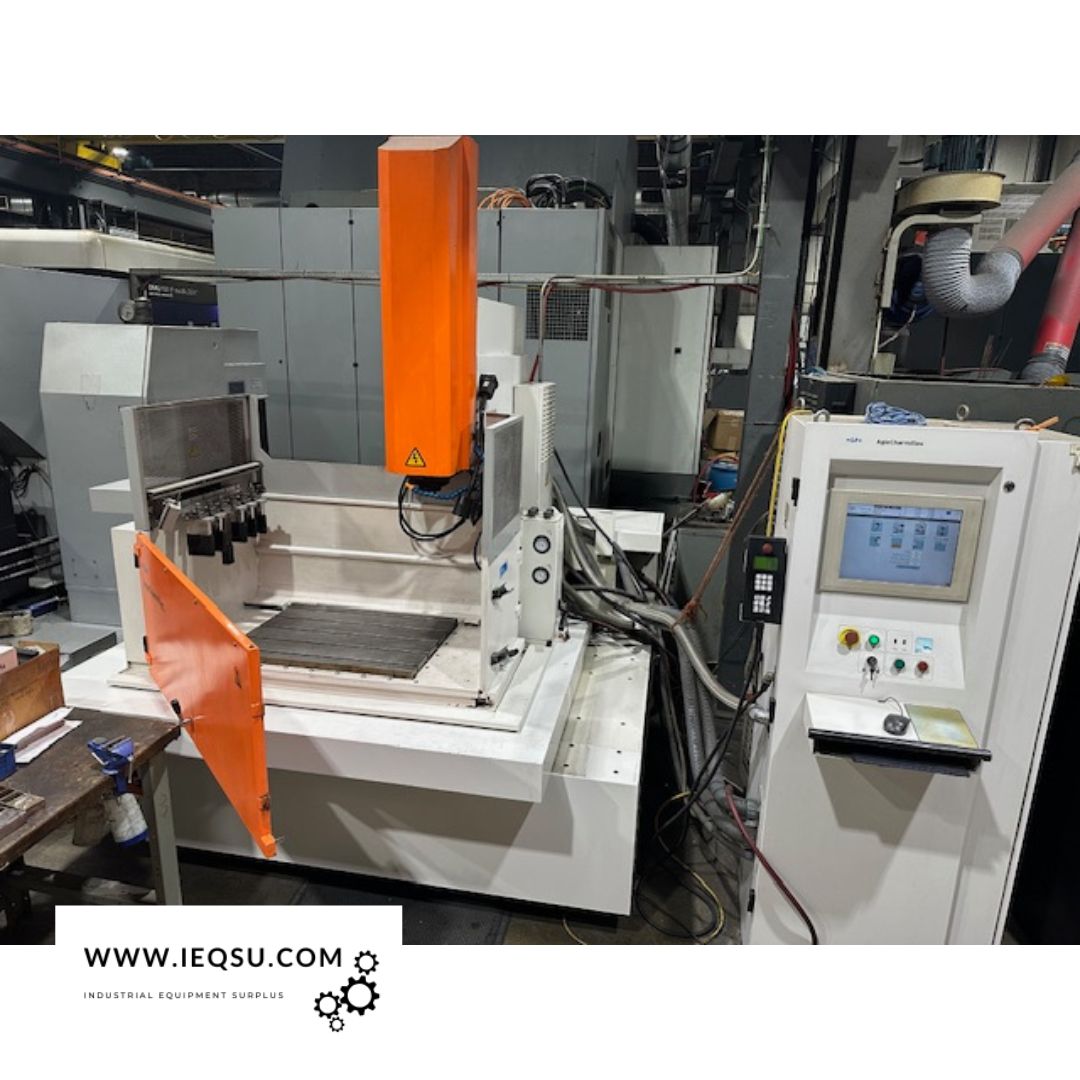

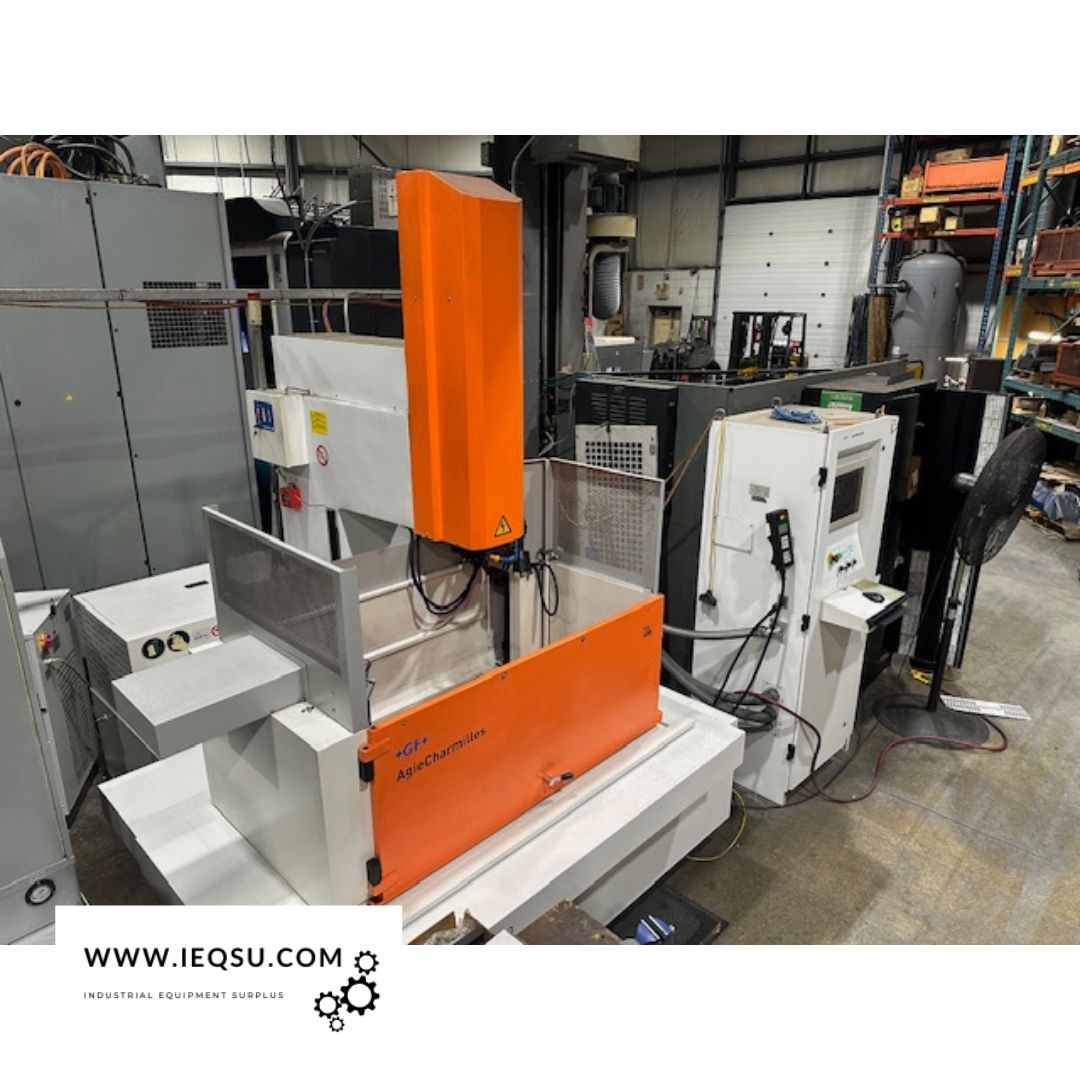

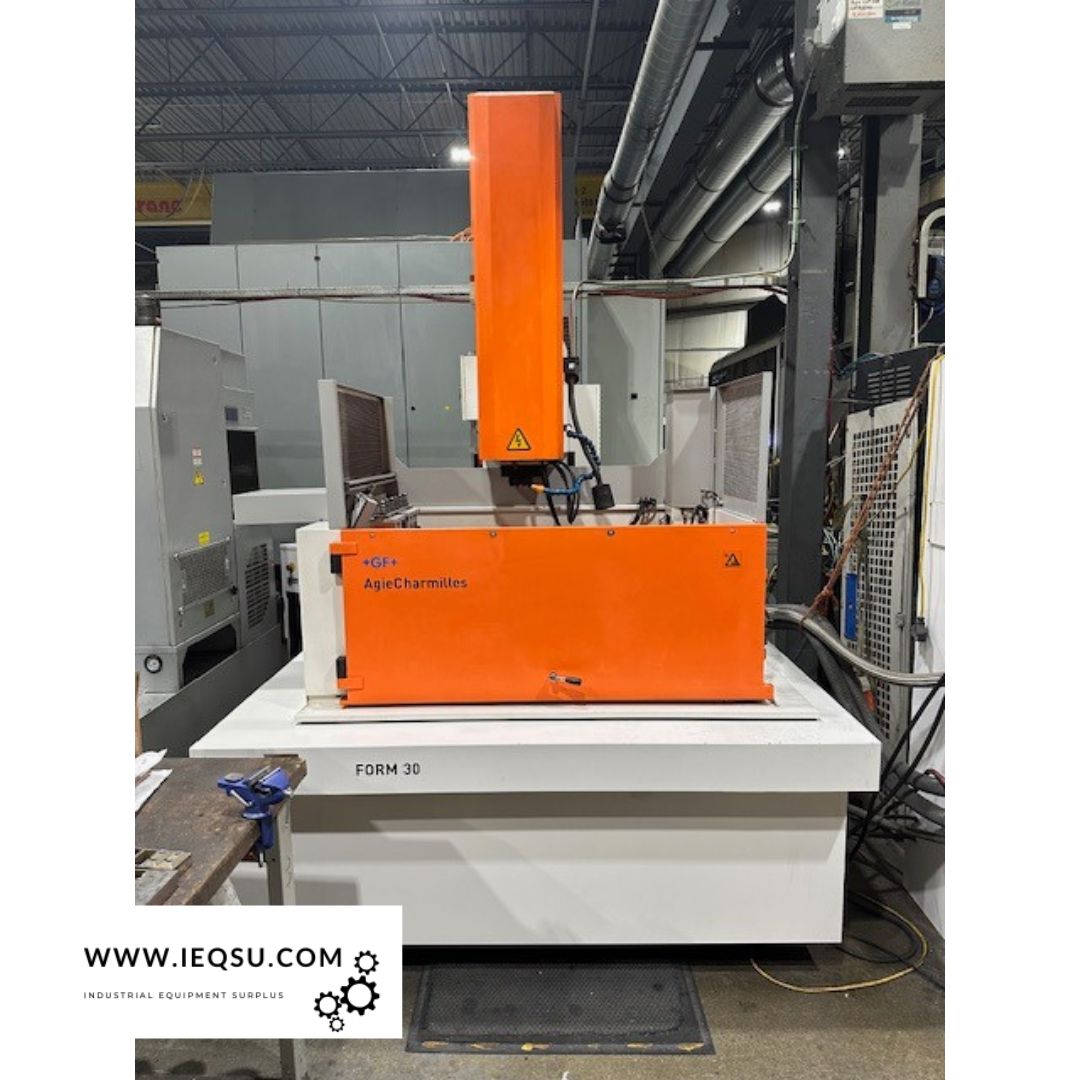

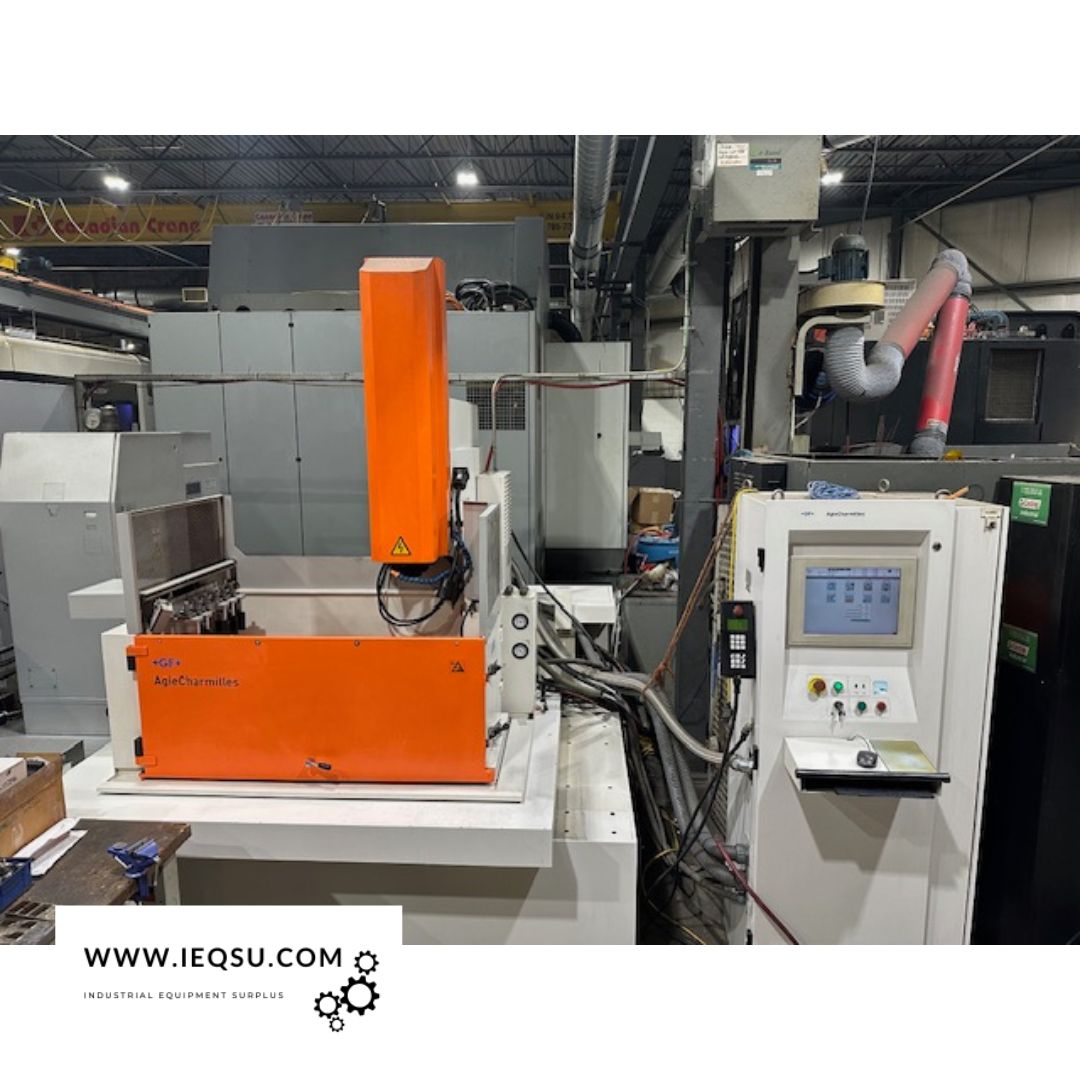

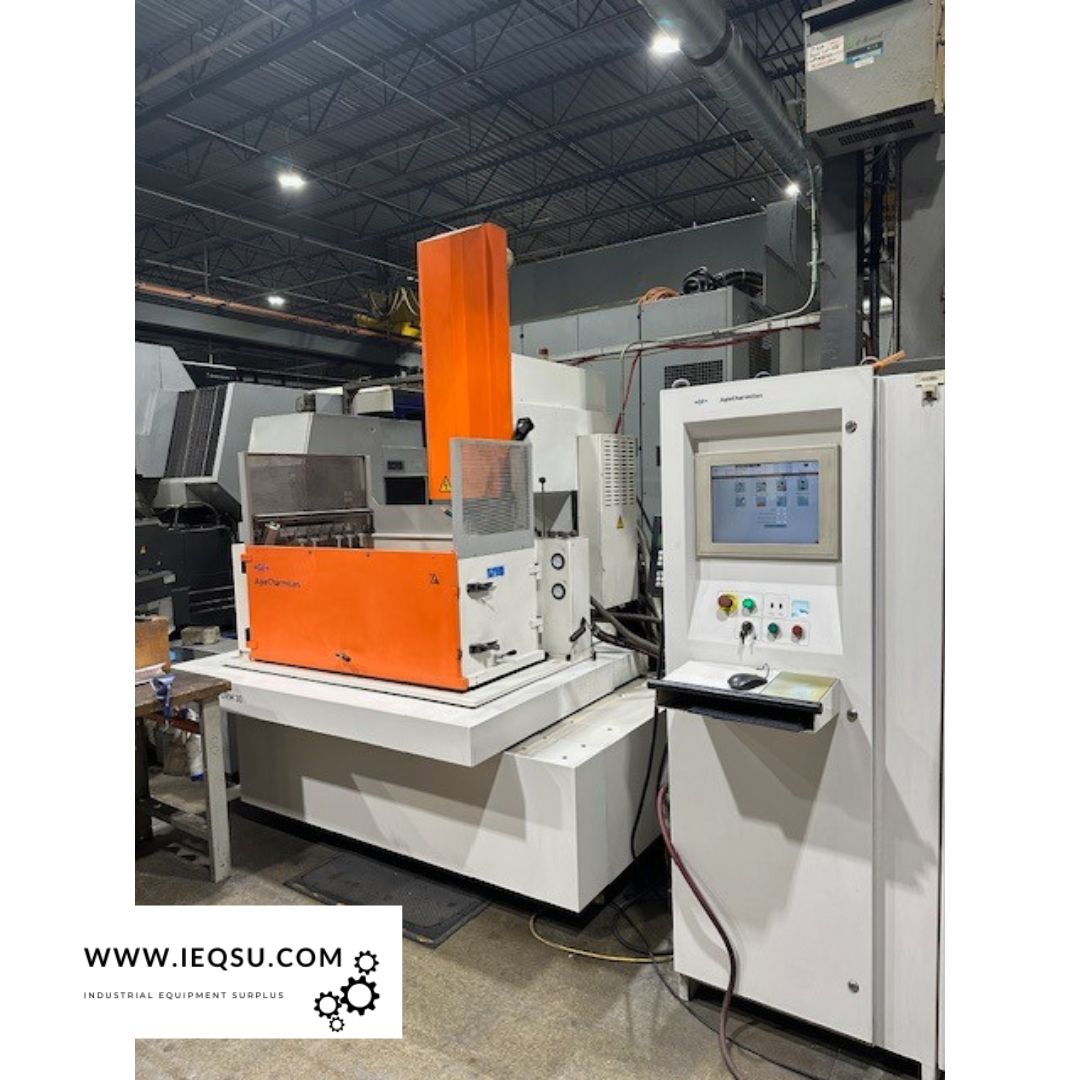

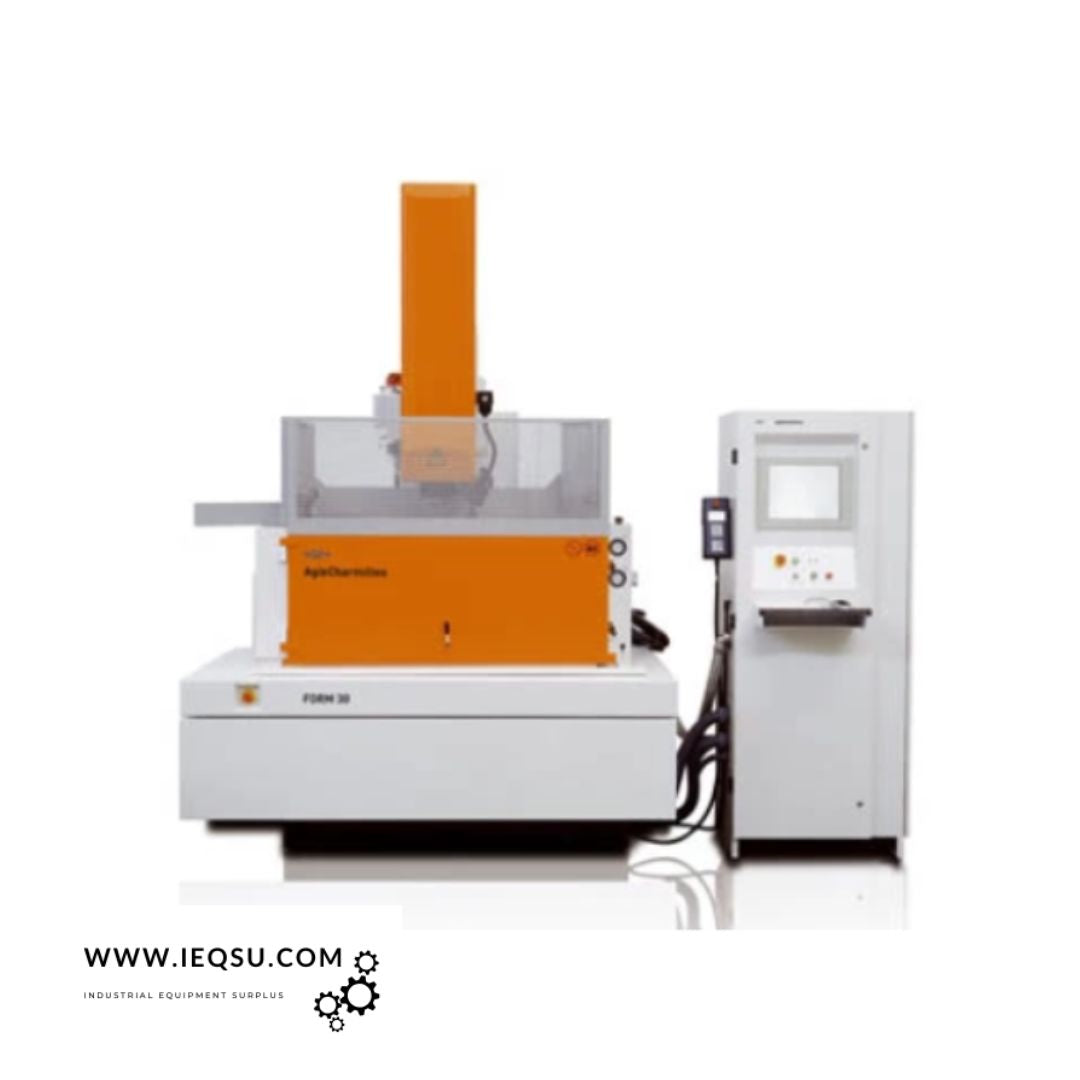

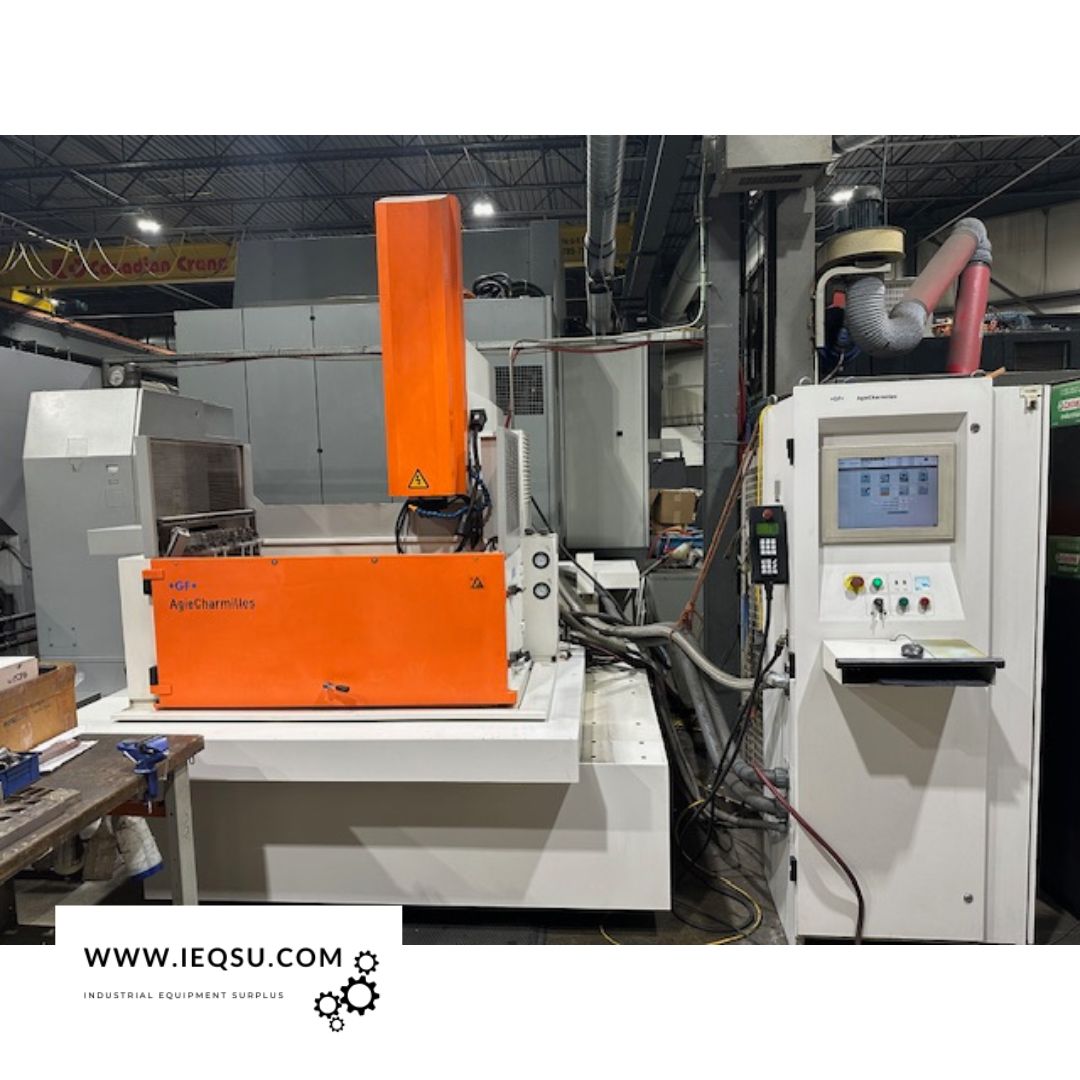

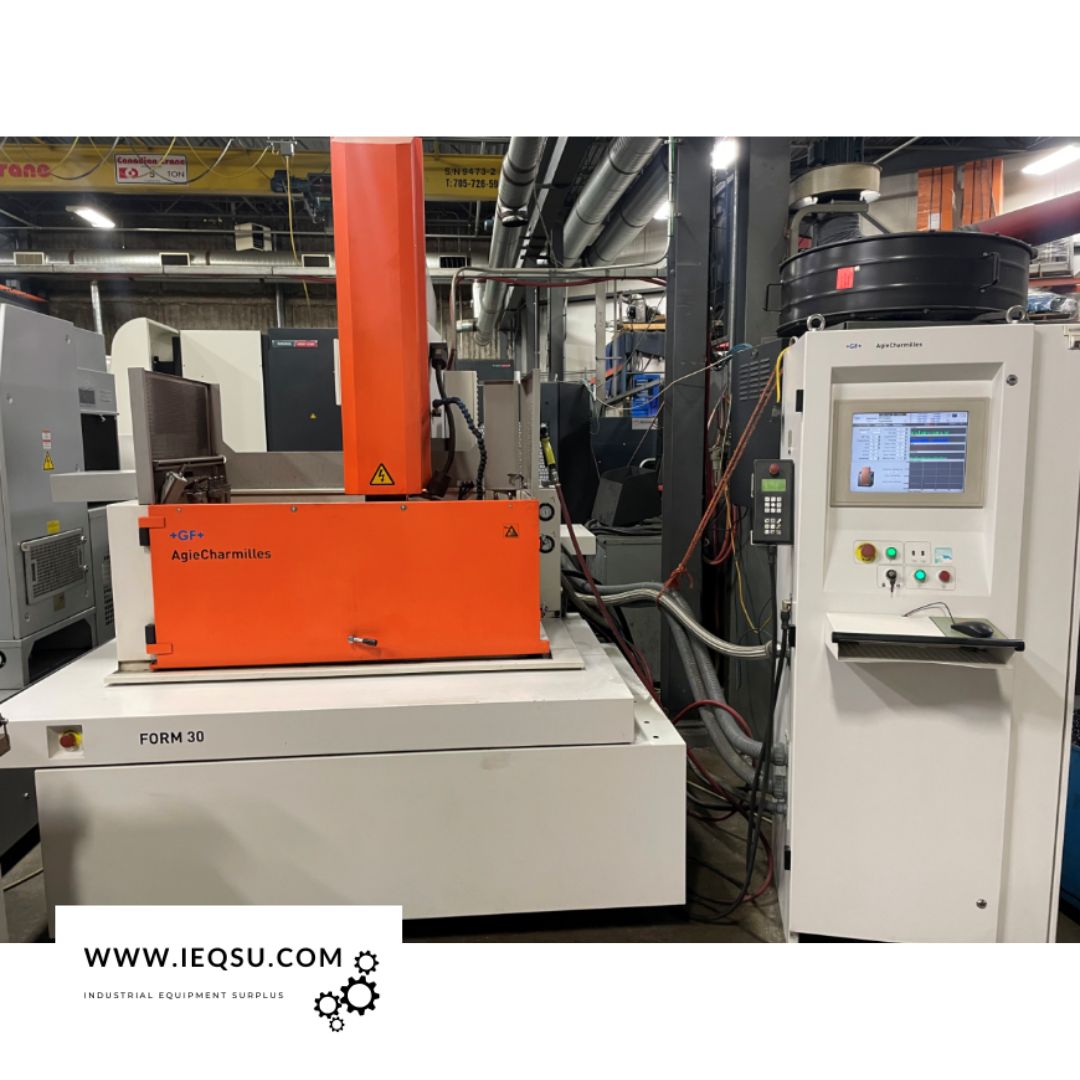

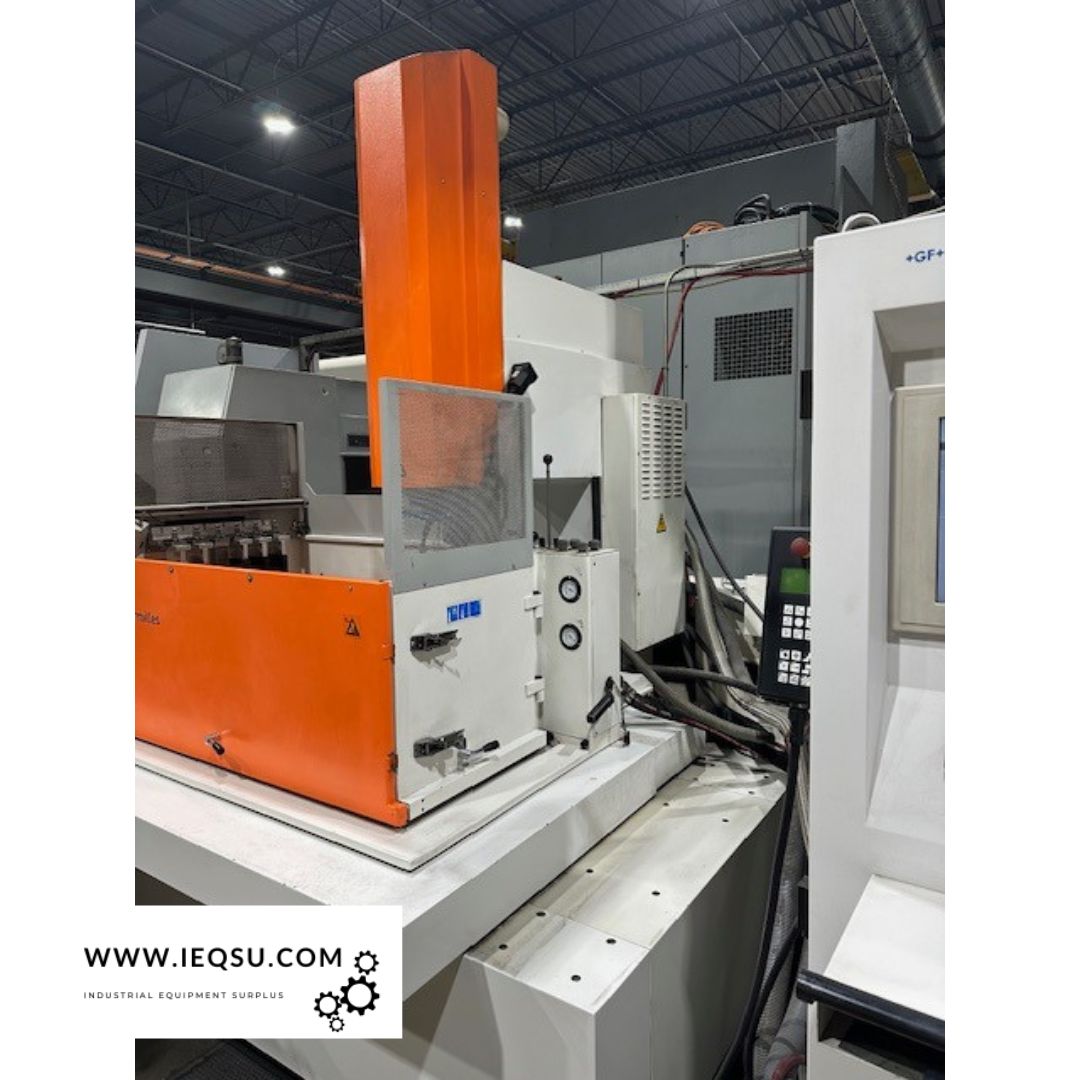

For Sale: Agie Charmilles FORM 30 CNC EDM Machine – 2011 Model
Make: Agie Charmilles | Model: FORM 30 | Year: 2011 | Serial Number: 395.90.117.0042

Upgrade your precision machining capabilities with this high-performance Agie Charmilles FORM 30 CNC EDM die sinking machine. Known for its exceptional accuracy, reliability, and efficiency, this 2011 model is ideal for tool and die shops, mold makers, and manufacturers seeking tight tolerances and superior surface finishes.

🔧 Specifications:

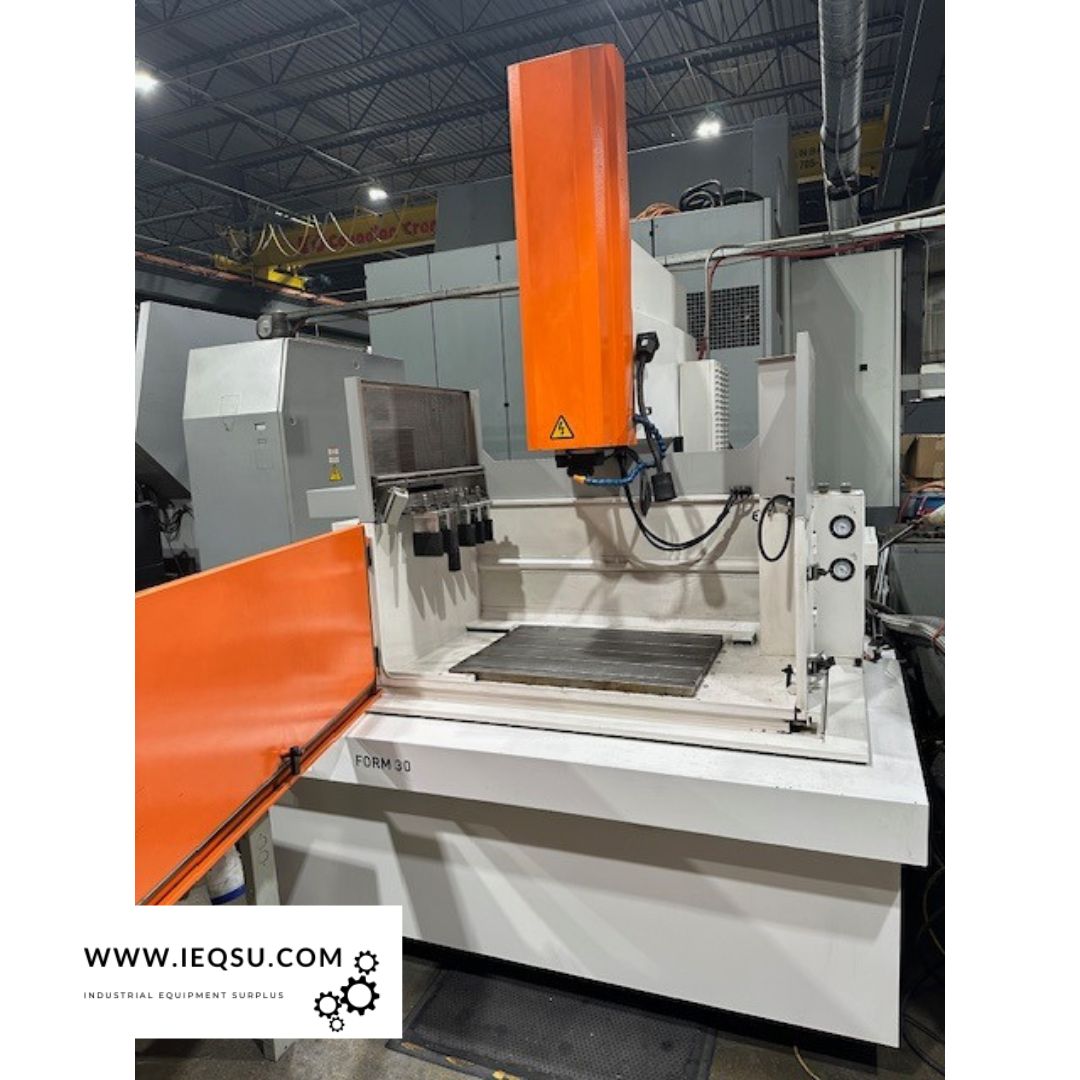

Internal Tank Dimensions: 47.2" x 31.5" x 19.6"

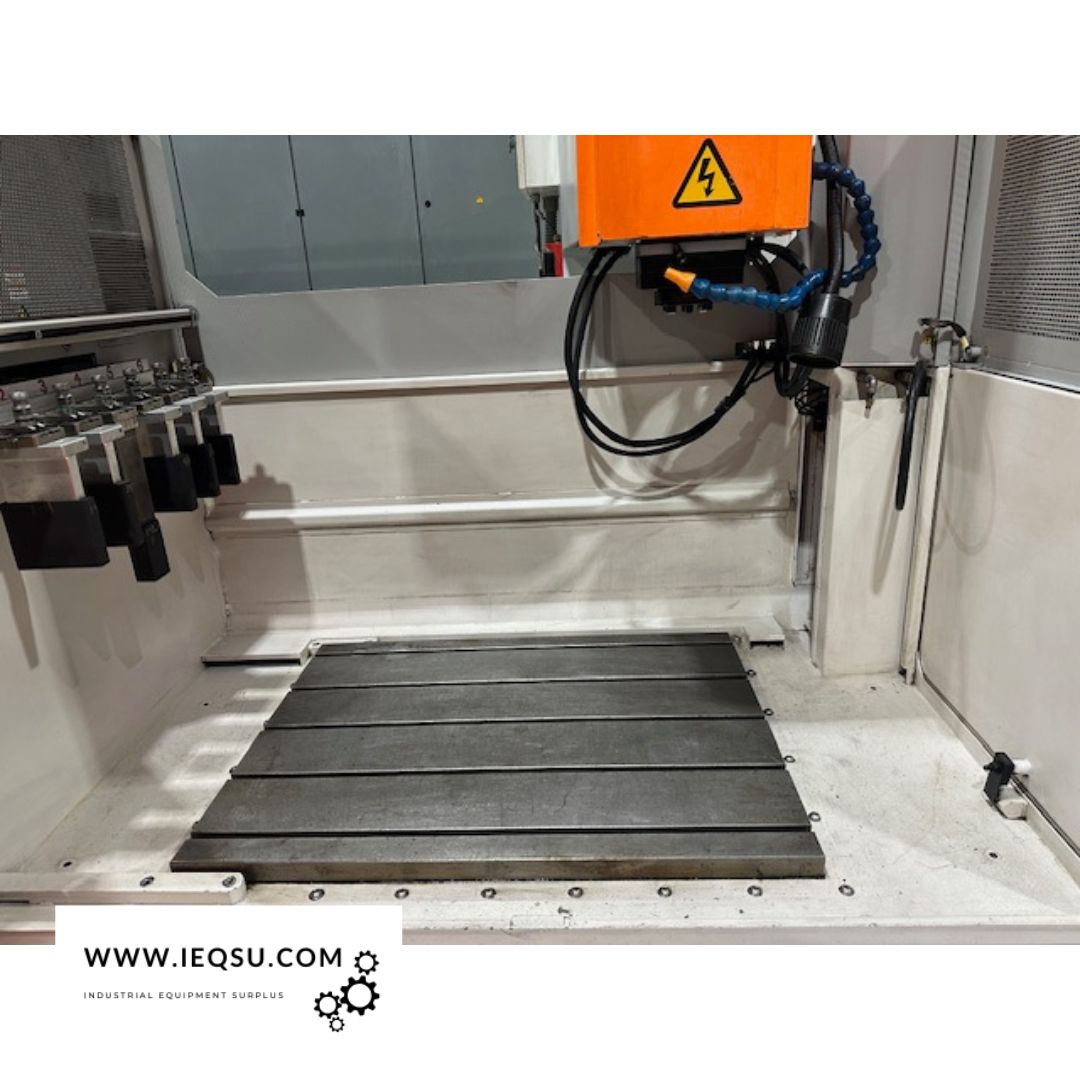

Table Size: 31.5" x 23.6"

X-Axis Travel: 23.6"

Y-Axis Travel: 15.7"

Z-Axis Travel: 15.7"

Maximum Workpiece Weight: 2,204 lbs

Peak Power Supply: 104 Amps

Dielectric Fluid Capacity: 190 Gallons

C-Axis Resolution: 0.001°

Positioning Accuracy: 0.5 Micron

Machine Weight: 7,500 lbs

Required Floor Space: 177" x 177" x 107"

✅ Included Features:
C-Axis (3R Macro) – Enhances multi-angle machining and precision rotation

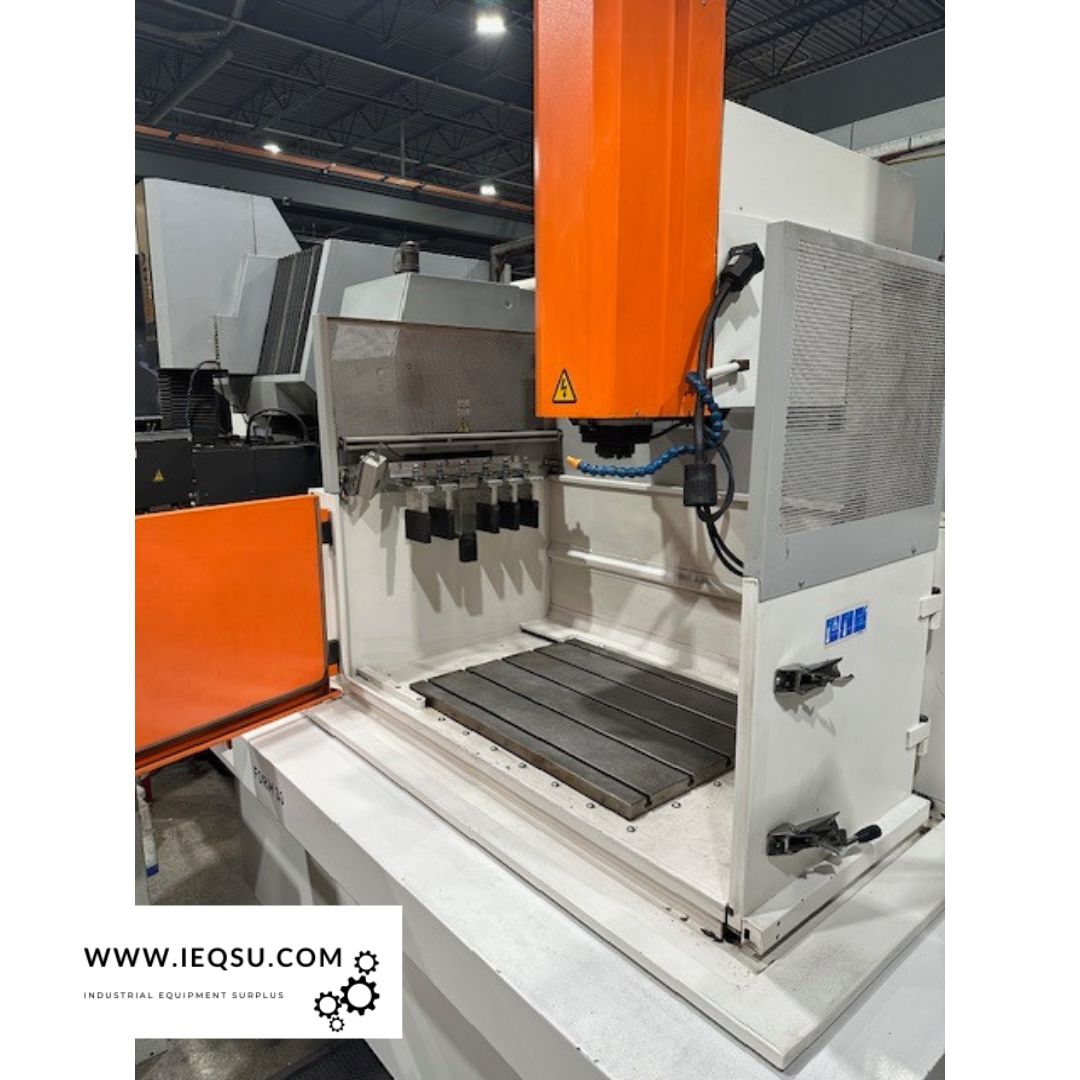

6-Position Automatic Electrode Changer (AEC) – Increases automation and productivity

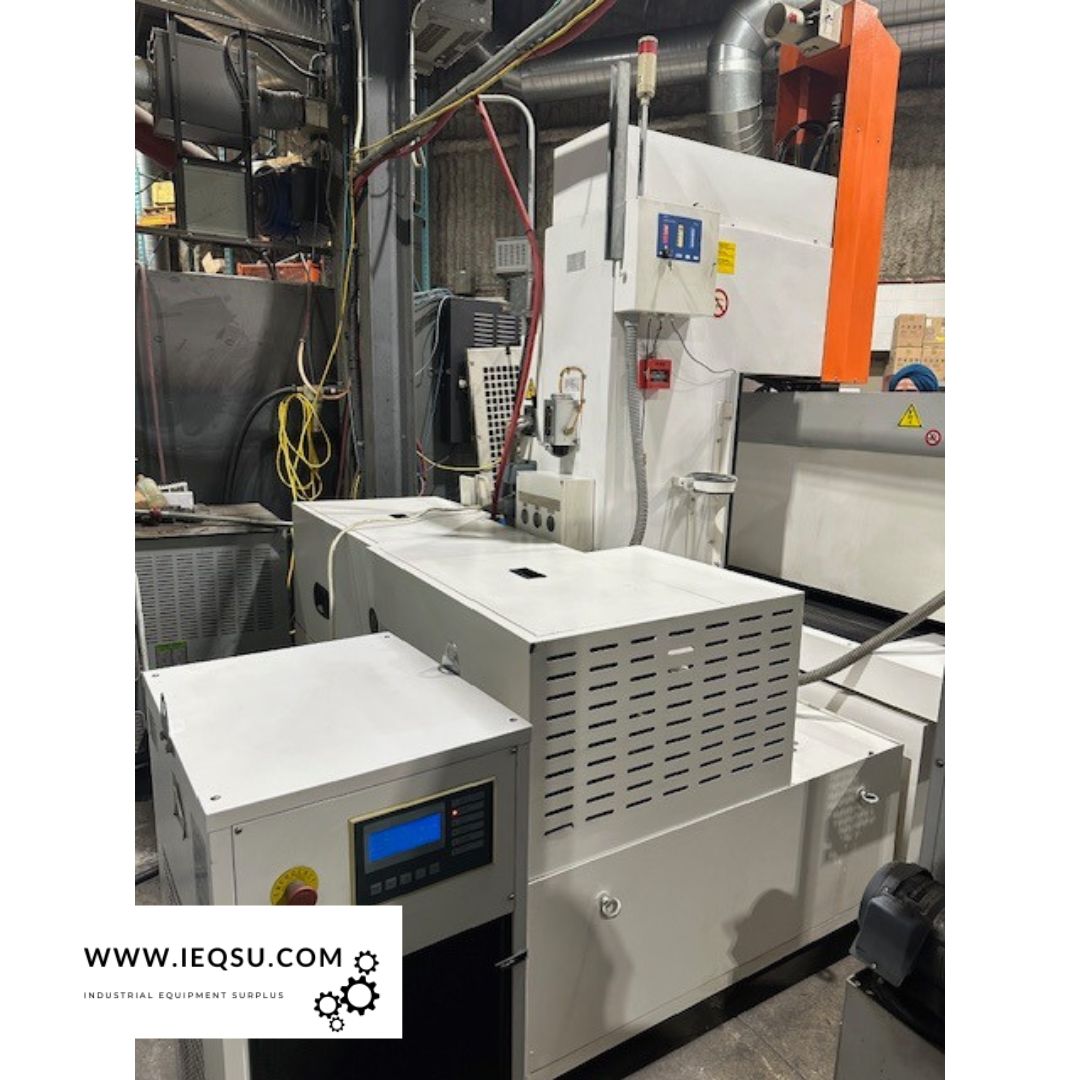

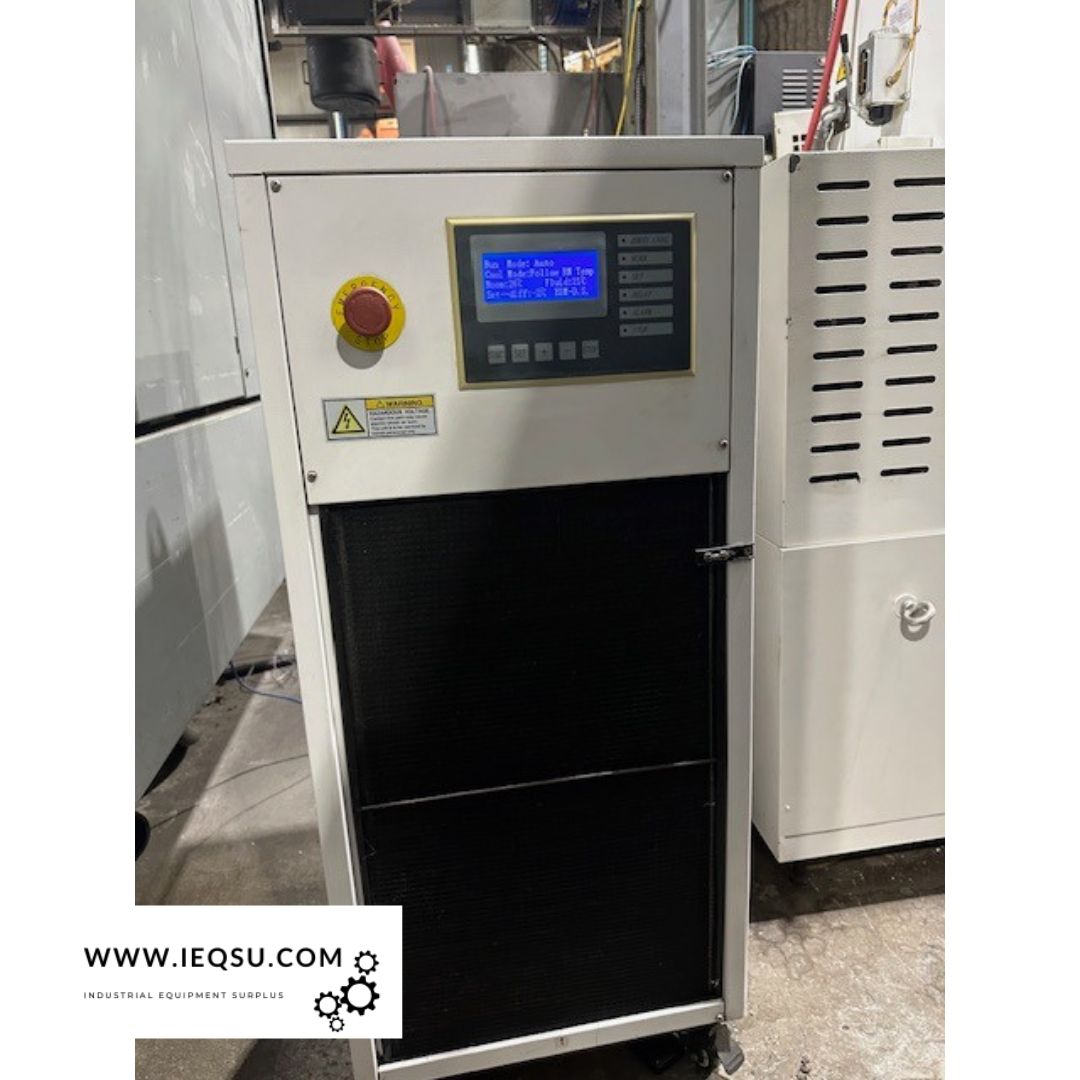

Chiller Unit – Maintains thermal stability for consistent machining accuracy

💡 Why Buy the FORM 30?
The Agie Charmilles FORM 30 is engineered for shops that demand micron-level precision, high-quality surface finishes, and reliable operation for complex geometries. With a robust structure and a large tank capacity, it accommodates large workpieces while maintaining thermal and mechanical stability.

📦 Condition: Excellent
🛠 Fully operational and well-maintained
📍 Available for immediate inspection and shipping
