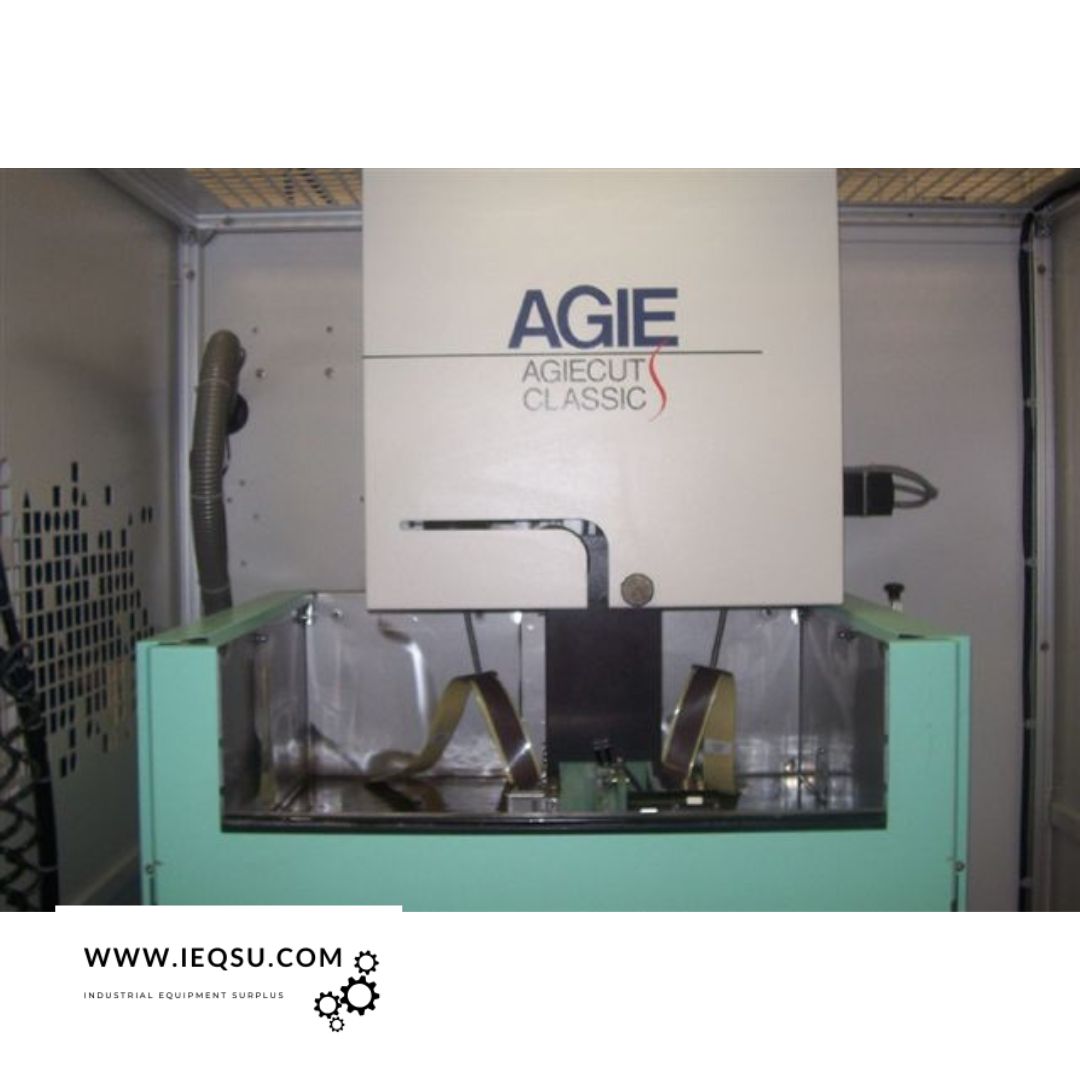

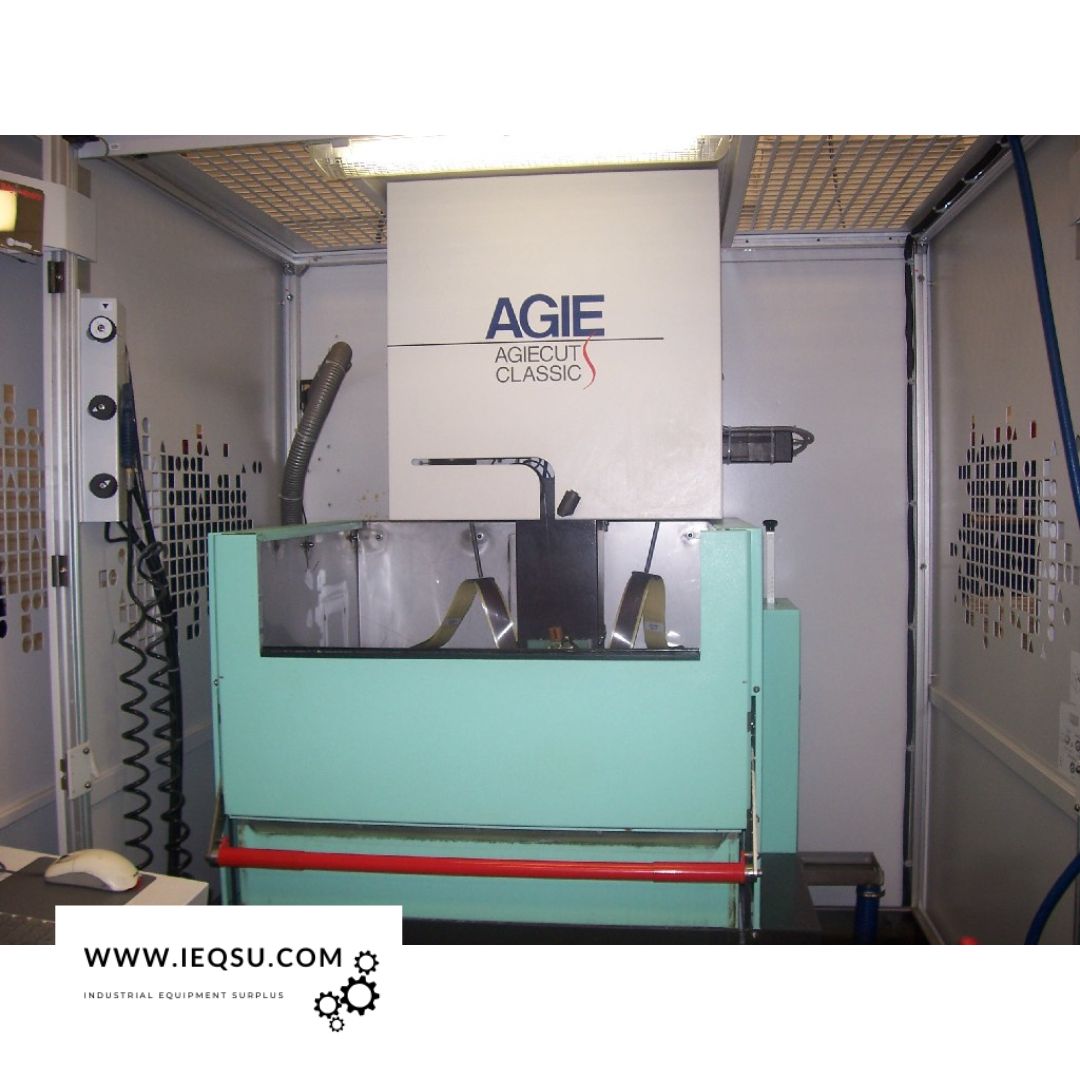

Agie Classic 2S Gold Edition Wire EDM – 2005 – Excellent Condition – Fully Equipped

This Agie Classic 2S Gold Edition Wire EDM (2005) is a high-precision EDM machine from one of the most respected manufacturers in the industry. Known for outstanding accuracy, reliability, and performance, this machine is ideal for toolrooms, precision machining shops, and production environments requiring fine finishes and tight tolerances.

Condition: Excellent
Includes: Full range of factory options, manuals, filtration system, chiller, and advanced software features.

Machine Specifications

Travels (X/Y/Z): 13.77" × 9.84" × 10"

U/V Travel: ± 2.75"

Max Workpiece Size: 29.5" × 21.6" × 9.8"

Rapid Traverse: 35.43 ipm

Max Cutting Speed: 28 sq/in per hour

Wire Guide Type: Indexable Zero Universal “V”

Max Taper: ±30° at 3.93"

Wire Spool Capacity: Up to 55 lbs

Resolution: 0.000004"

Repeatability: 0.000080"

Display: 15" SVGA TFT

Machine Dimensions: 87" × 87" × 87.5"

Weight: 6,380 lbs

Equipped With

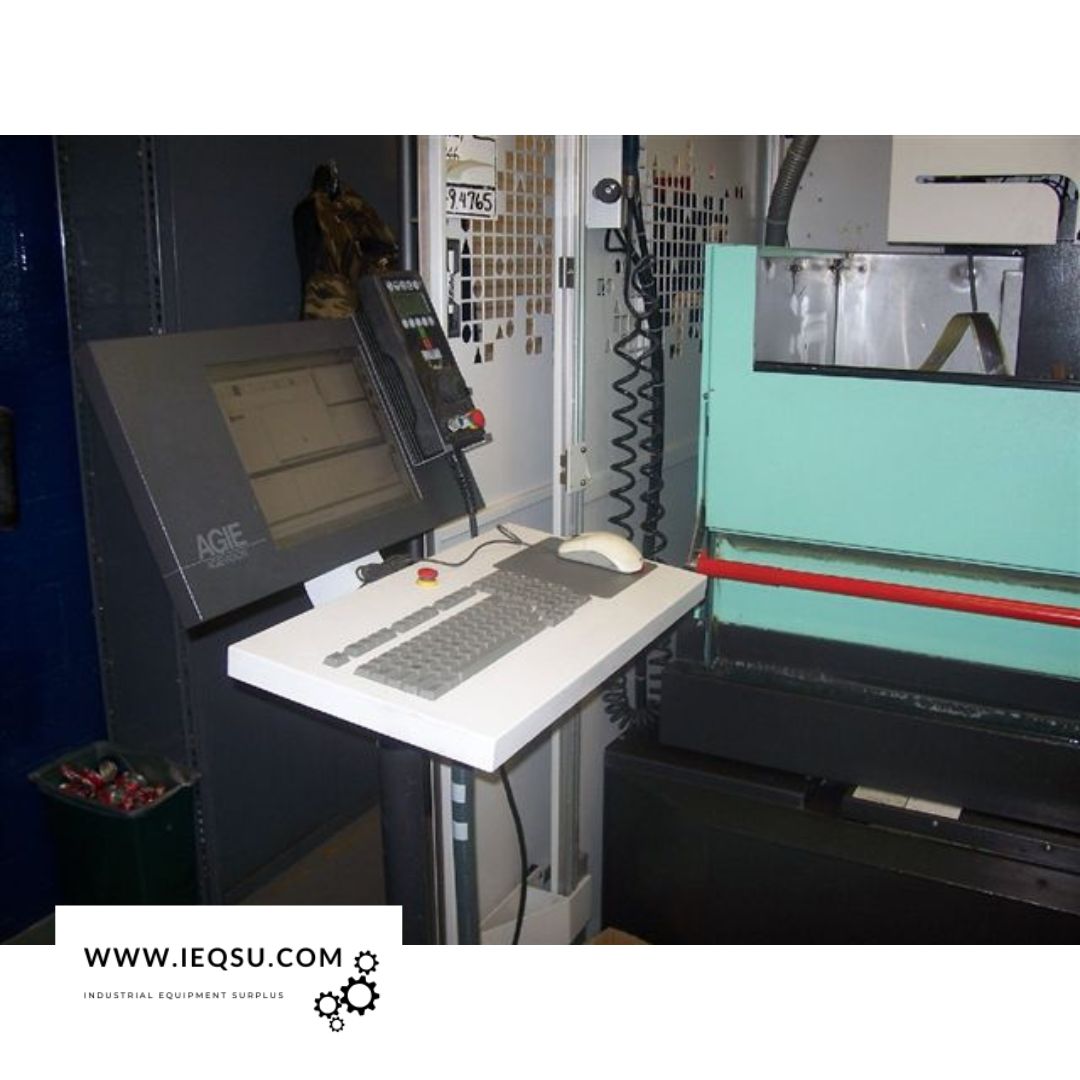

Agievision 3 CNC Controller

Submerged machining

Agiejet automatic wire threading

Front manual drop door

Pieceinsert emergency job software

Dynamic Corner Control

Variocut auto thickness compensation

Four-sided table

Fine-finish circuitry (.2RA module)

.008"–.013" wire capability

Purecut power module (for carbide, titanium, etc.)

Wash gun

8-filter dual filtration system

Agiejogger advanced hand control

Software version CUT05.06.01

Isolation transformer

Electric chiller

All manuals included
